Code of Federal Regulations Title 46. Shipping § 46.162.050–17 Separator test rig
Current as of October 02, 2022 | Updated by FindLaw Staff
(a) This section contains requirements for test rigs used in approval testing of separators. A diagram of a typical test rig is shown in Figure 162.050–17(a).

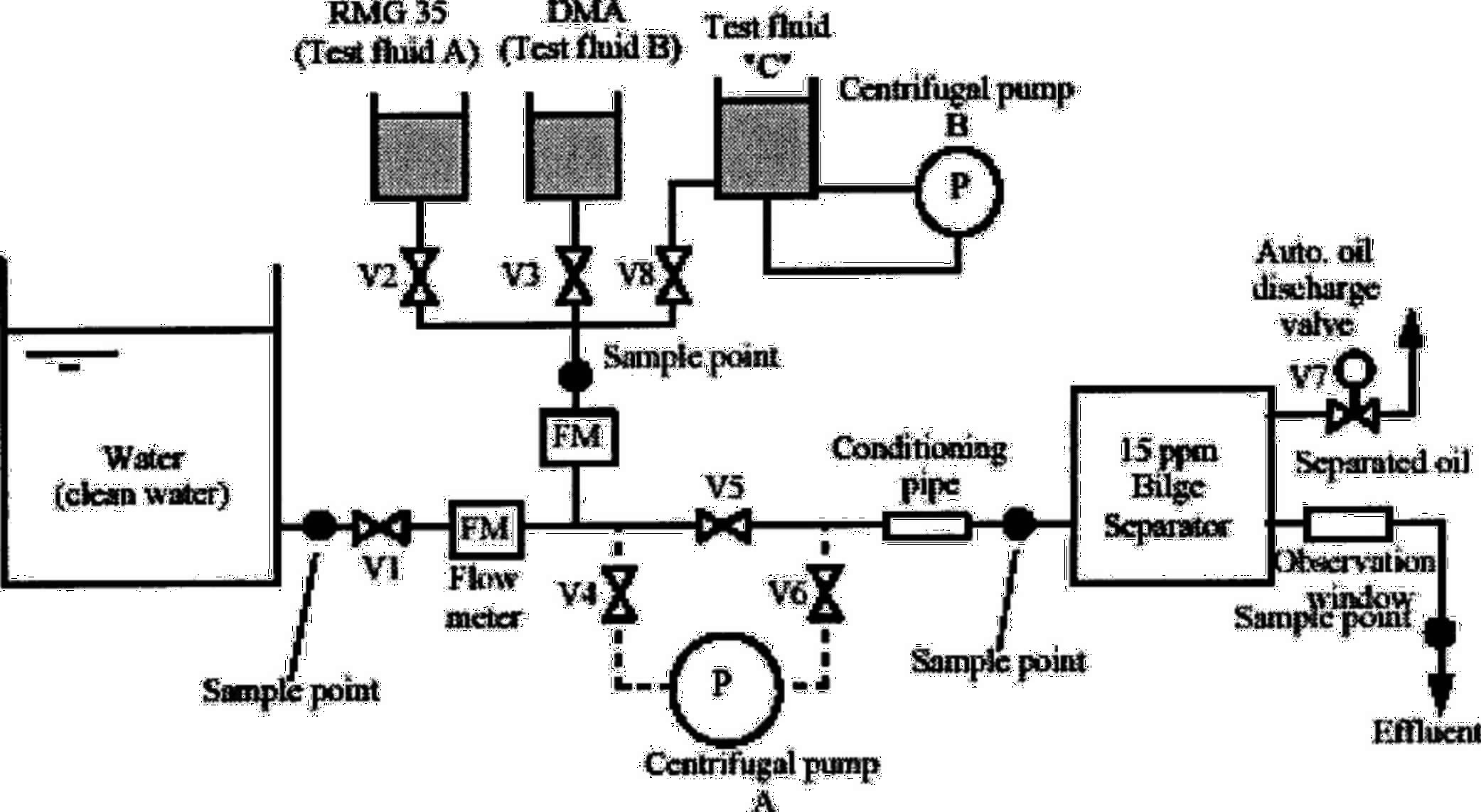

FIGURE 162.050–17(a)—SEPARATOR TEST RIG
(b) Each mixture pump on a test rig must—
(1) Be a centrifugal pump capable of operating at 1,000 revolutions per minute or more;
(2) Have a delivery capacity of at least 1.5 times the maximum throughput at which the separator being tested is designed to operate;
(3) Have a maximum delivery pressure that is equal to or greater than the maximum influent pressure at which the separator is designed to operate; and
(4) Have either bypass piping to its suction side or a throttle valve or orifice on its discharge side.
(c) The inlet piping of the test rig must be sized so that—
(1) Influent water flows at a Reynolds Number of at least 10,000;
(2) The influent flow rate is between one and three meters per second; and
(3) Its length is at least 20 times its inside diameter.
(d) Each sample point on a test rig must meet the design requirements described in Figure 162.050–17(d) and must be in a vertical portion of the test rig piping.

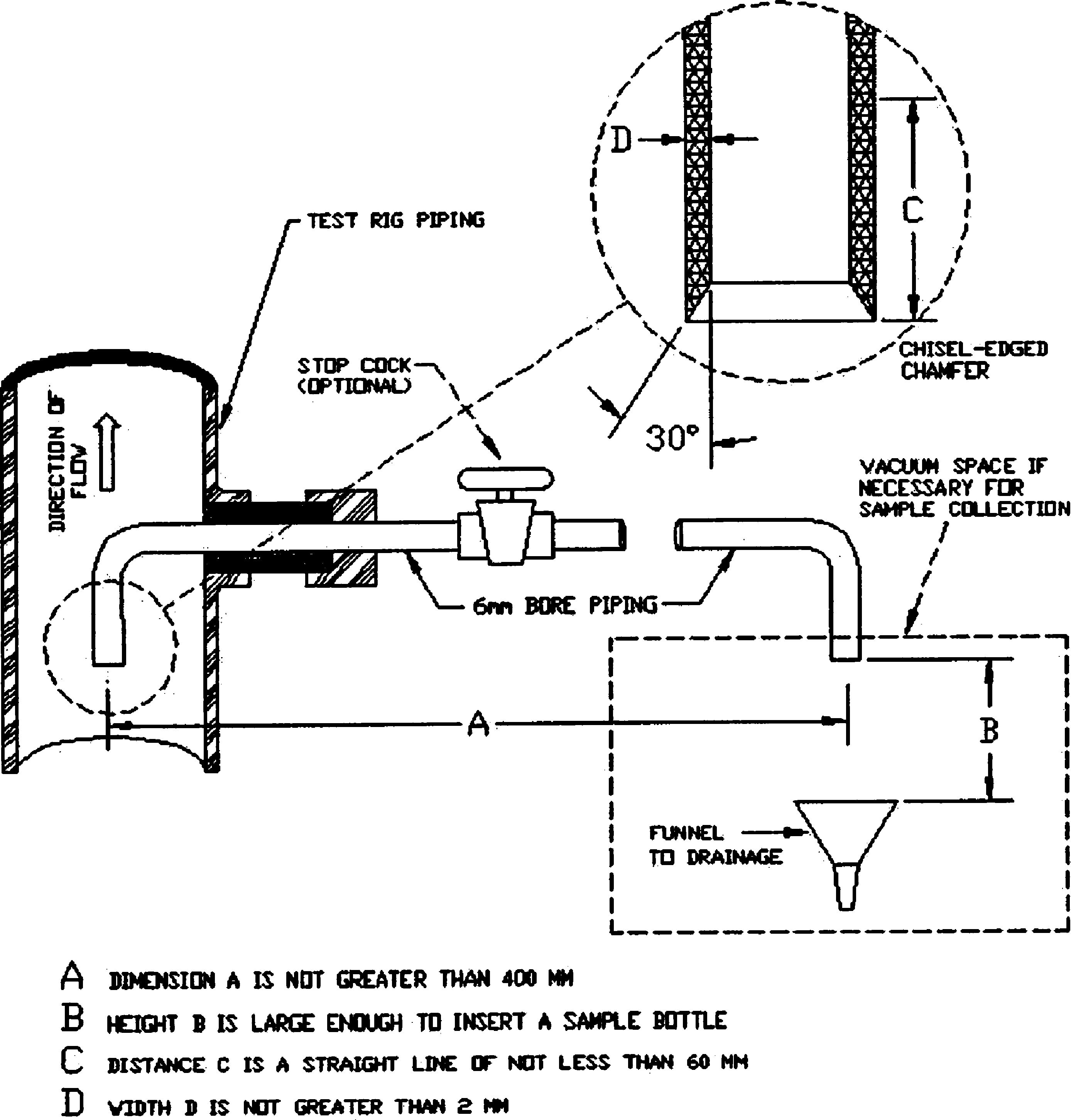

FIGURE 162.050–17(d)—SAMPLE POINT
