1. Mass Balance Method for § 98.123(b). [Note: Numbering convention here matches original rule text, 75 FR 74774, December 1, 2010.]

(b) Mass balance method. Before using the mass balance approach to estimate your fluorinated GHG emissions
from a process, you must ensure that the process and the equipment and methods used
to measure it meet either the error limits described in this paragraph and calculated
under paragraph (b)(1) of this section or the requirements specified in paragraph
§ 98.124(b)(8). If you choose to calculate the error limits, you must estimate the absolute and
relative errors associated with using the mass balance approach on that process using
Equations L–1 through L–4 of this section in conjunction with Equations L–5 through
L–10 of this section. You may use the mass-balance approach to estimate emissions from the process if
this calculation results in an absolute error of less than or equal to 3,000 metric
tons CO_{2}e per year or a relative error of less than or equal to 30 percent of the estimated
CO_{2}e fluorinated GHG emissions. If you do not meet either of the error limits or the requirements of paragraph § 98.124(b)(8), you must use the emission factor approach detailed in paragraphs (c), (d), and (e)
of this section to estimate emissions from the process.

(1) Error calculation. To perform the calculation, you must first calculate the absolute and relative errors associated with the quantities calculated using either Equations L–7 through L–10 of this section or Equation L–17 of this section. Alternatively, you may estimate these errors based on the variability of previous process measurements (e.g., the variability of measurements of stream concentrations), provided these measurements are representative of the current process and current measurement devices and techniques. Once errors have been calculated for the quantities in these equations, those errors must be used to calculate the errors in Equations L–6 and L–5 of this section. You may ignore the errors associated with Equations L–11, L–12, and L–13 of this section.

(i) Where the measured quantity is a mass, the error in the mass must be equated to the accuracy or precision (whichever is larger) of the flowmeter, scale, or combination of volumetric and density measurements at the flow rate or mass measured.

(ii) Where the measured quantity is a concentration of a stream component, the error of the concentration must be equated to the accuracy or precision (whichever is larger) with which you estimate the mean concentration of that stream component, accounting for the variability of the process, the frequency of the measurements, and the accuracy or precision (whichever is larger) of the analytical technique used to measure the concentration at the concentration measured. If the variability of process measurements is used to estimate the error, this variability shall be assumed to account both for the variability of the process and the precision of the analytical technique. Use standard statistical techniques such as the student's t distribution to estimate the error of the mean of the concentration measurements as a function of process variability and frequency of measurement.

(iii) Equation L–1 of this section provides the general formula for calculating the absolute errors of sums and differences where the sum, S, is the summation of variables measured, a, b, c, etc. (e.g., S = a + b + c):

Where:

e_{SA} = Absolute error of the sum, expressed as one half of a 95 percent confidence interval.

e_{a} = Relative error of a, expressed as one half of a 95 percent confidence interval.

e_{b} = Relative error of b, expressed as one half of a 95 percent confidence interval.

e_{c} = Relative error of c, expressed as one half of a 95 percent confidence interval.

(iv) Equation L–2 of this section provides the general formula for calculating the relative errors of sums and differences:

Where:

e_{SR} = Relative error of the sum, expressed as one half of a 95 percent confidence interval.

e_{SA} = Absolute error of the sum, expressed as one half of a 95 percent confidence interval.

a+b+c = Sum of the variables measured.

(v) Equation L–3 of this section provides the general formula for calculating the absolute errors of products (e.g., flow rates of GHGs calculated as the product of the flow rate of the stream and the concentration of the GHG in the stream), where the product, P, is the result of multiplying the variables measured, a, b, c, etc. (e.g., P = a*b*c):

Where:

e_{PA} = Absolute error of the product, expressed as one half of a 95 percent confidence
interval.

e_{a} = Relative error of a, expressed as one half of a 95 percent confidence interval.

e_{b} = Relative error of b, expressed as one half of a 95 percent confidence interval.

e_{c} = Relative error of c, expressed as one half of a 95 percent confidence interval.

(vi) Equation L–4 of this section provides the general formula for calculating the relative errors of products:

Where:

e_{PR} = Relative error of the product, expressed as one half of a 95 percent confidence
interval.

e_{PA} = Absolute error of the product, expressed as one half of a 95 percent confidence
interval.

a*b*c = Product of the variables measured.

(vii) Calculate the absolute error of the emissions estimate in terms of CO_{2}e by performing a preliminary estimate of the annual CO_{2}e emissions of the process using the method in paragraph (b)(1)(viii) of this section. Multiply this result by the relative error calculated for the mass of fluorine emitted
from the process in Equation L–6 of this section.

(viii) To estimate the annual CO_{2}e emissions of the process for use in the error estimate, apply the methods set forth
in paragraphs (b)(2) through (7) and (b)(9) through (16) of this section to representative
process measurements. If these process measurements represent less than one year of typical process activity,
adjust the estimated emissions to account for one year of typical process activity. To estimate the terms FER_{d}, FEP, and FEB_{k} for use in the error estimate for Equations L–11, L–12, and L–13 of this section,
you must either use emission testing, monitoring of emitted streams, and/or engineering
calculations or assessments, or in the alternative assume that all fluorine is emitted
in the form of the fluorinated GHG that has the highest GWP among the fluorinated
GHGs that occur in more than trace concentrations in the process. To convert the fluorinated GHG emissions to CO_{2}e, use Equation A–1 of § 98.2. For fluorinated GHGs whose GWPs are not listed in Table A–1 to subpart A of this
part, use a default GWP of 2,000.

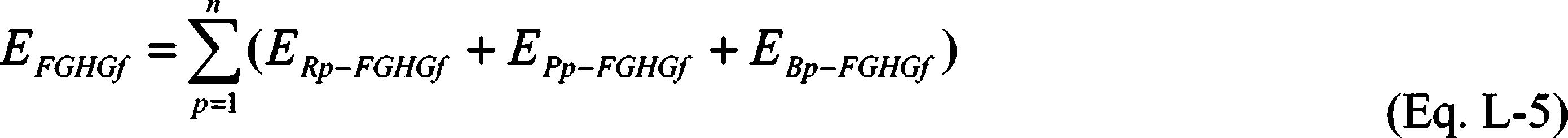

(2) The total mass of each fluorinated GHG emitted annually from each fluorinated gas production and each fluorinated GHG transformation process must be estimated by using Equation L–5 of this section.

Where:

E_{FGHGf} = Total mass of each fluorinated GHG f emitted annually from production or transformation
process i (metric tons).

E_{Rp–FGHGf} = Total mass of fluorinated GHG reactant f emitted from production process i over
the period p (metric tons, calculated in Equation L–11 of this section).

E_{Pp–FGHGf} = Total mass of the fluorinated GHG product f emitted from production process i over
the period p (metric tons, calculated in Equation L–12 of this section).

E_{Bp–FGHGf} = Total mass of fluorinated GHG by-product f emitted from production process i over
the period p (metric tons, calculated in Equation L–13 of this section).

n = Number of concentration and flow measurement periods for the year.

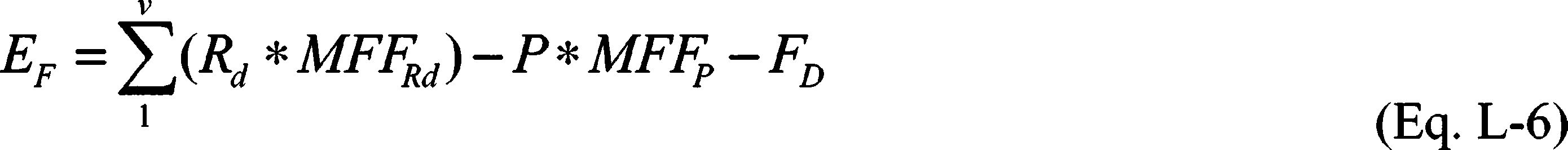

(3) The total mass of fluorine emitted from process i over the period p must be estimated at least monthly by calculating the difference between the total mass of fluorine in the reactant(s) (or inputs, for processes that do not involve a chemical reaction) and the total mass of fluorine in the product (or outputs, for processes that do not involve a chemical reaction), accounting for the total mass of fluorine in any destroyed or recaptured streams that contain reactants, products, or by-products (or inputs or outputs). This calculation must be performed using Equation L–6 of this section. An element other than fluorine may be used in the mass-balance equation, provided the element occurs in all of the fluorinated GHGs fed into or generated by the process. In this case, the mass fractions of the element in the reactants, products, and by-products must be calculated as appropriate for that element.

Where:

E_{F} = Total mass of fluorine emitted from process i over the period p (metric tons).

R_{d} = Total mass of the fluorine-containing reactant d that is fed into process i over
the period p (metric tons).

P = Total mass of the fluorine-containing product produced by process i over the period p (metric tons).

MFF_{Rd} = Mass fraction of fluorine in reactant d, calculated in Equation L–14 of this section.

MFF_{P} = Mass fraction of fluorine in the product, calculated in Equation L–15 of this section.

F_{D} = Total mass of fluorine in destroyed or recaptured streams from process i containing
fluorine-containing reactants, products, and by-products over the period p, calculated
in Equation L–7 of this section.

v = Number of fluorine-containing reactants fed into process i.

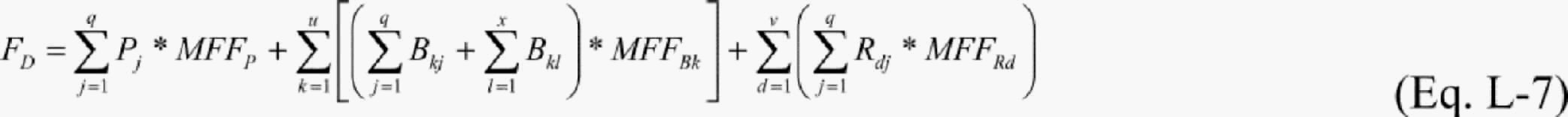

(4) The mass of total fluorine in destroyed or recaptured streams containing fluorine-containing reactants, products, and by-products must be estimated at least monthly using Equation L–7 of this section unless you use the alternative approach provided in paragraph (b)(15) of this section.

Where:

F_{D} = Total mass of fluorine in destroyed or recaptured streams from process i containing
fluorine-containing reactants, products, and by-products over the period p.

P_{j} = Mass of the fluorine-containing product removed from process i in stream j and
destroyed over the period p (calculated in Equation L–8 or L–9 of this section).

B_{kj} = Mass of fluorine-containing by-product k removed from process i in stream j and
destroyed over the period p (calculated in Equation L–8 or L–9 of this section).

B_{kl} = Mass of fluorine-containing by-product k removed from process i in stream l and
recaptured over the period p.

R_{dj} = Mass of fluorine-containing reactant d removed from process i in stream j and destroyed
over the period p (calculated in Equation L–8 or L–9 of this section).

MFF_{Rd} = Mass fraction of fluorine in reactant d, calculated in Equation L–14 of this section.

MFF_{P} = Mass fraction of fluorine in the product, calculated in Equation L–15 of this section.

MFF_{Bk} = Mass fraction of fluorine in by-product k, calculated in Equation L–16 of this
section.

q = Number of streams destroyed in process i.

x = Number of streams recaptured in process i.

u = Number of fluorine-containing by-products generated in process i.

v = Number of fluorine-containing reactants fed into process i.

(5) The mass of each fluorinated GHG removed from process i in stream j and destroyed
over the period p (i.e., P_{j}, B_{kj}, or R_{dj}, as applicable) must be estimated by applying the destruction efficiency (DE) of
the device that has been demonstrated for the fluorinated GHG f to fluorinated GHG
f using Equation L–8 of this section:

Where:

M_{FGHGfj} = Mass of fluorinated GHG f removed from process i in stream j and destroyed over
the period p. (This may be P_{j}, B_{kj}, or R_{dj}, as applicable.)

DE_{FGHGf} = Destruction efficiency of the device that has been demonstrated for fluorinated
GHG f in stream j (fraction).

C_{FGHGfj} = Concentration (mass fraction) of fluorinated GHG f in stream j removed from process
i and fed into the destruction device over the period p. If this concentration is
only a trace concentration, c_{F–GHGfj} is equal to zero.

S_{j} = Mass removed in stream j from process i and fed into the destruction device over
the period p (metric tons).

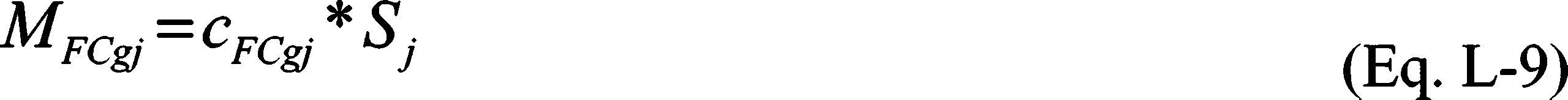

(6) The mass of each fluorine-containing compound that is not a fluorinated GHG and
that is removed from process i in stream j and destroyed over the period p (i.e.,
P_{j}, B_{kj}, or R_{dj}, as applicable) must be estimated using Equation L–9 of this section.

Where:

M_{FCgj} = Mass of non–GHG fluorine-containing compound g removed from process i in stream
j and destroyed over the period p. (This may be P_{j}, B_{kj}, or R_{dj}, as applicable).

c_{FCgj} = Concentration (mass fraction) of non–GHG fluorine-containing compound g in stream
j removed from process i and fed into the destruction device over the period p. If
this concentration is only a trace concentration, c_{FCgj} is equal to zero.

S_{j} = Mass removed in stream j from process i and fed into the destruction device over
the period p (metric tons).

(7) The mass of fluorine-containing by-product k removed from process i in stream l and recaptured over the period p must be estimated using Equation L–10 of this section:

Where:

B_{kl} = Mass of fluorine-containing by-product k removed from process i in stream l and
recaptured over the period p (metric tons).

c_{Bkl} = Concentration (mass fraction) of fluorine-containing by-product k in stream l removed
from process i and recaptured over the period p. If this concentration is only a trace
concentration, c_{Bkl} is equal to zero.

S_{l} = Mass removed in stream l from process i and recaptured over the period p (metric
tons).

(8) To estimate the terms FER_{d}, FEP, and FEB_{k} for Equations L–11, L–12, and L–13 of this section, you must assume that the total
mass of fluorine emitted, E_{F}, estimated in Equation L–6 of this section, occurs in the form of the fluorinated
GHG that has the highest GWP among the fluorinated GHGs that occur in more than trace
concentrations in the process unless you possess emission characterization measurements
showing otherwise. These emission characterization measurements must meet the requirements in paragraph
(8)(i), (ii), or (iii) of this section, as appropriate. The sum of the terms must equal 1. You must document the data and calculations that are used to speciate individual
compounds and to estimate FER_{d}, FEP, and FEB_{k}. Exclude from your calculations the fluorine included in F_{D}. For example, exclude fluorine-containing compounds that are not fluorinated GHGs
and that result from the destruction of fluorinated GHGs by any destruction devices
(e.g., the mass of HF created by combustion of an HFC). However, include emissions of fluorinated GHGs that survive the destruction process.

(i) If the calculations under paragraph (b)(1)(viii) of this section, or any subsequent
measurements and calculations under this subpart, indicate that the process emits
25,000 metric tons CO_{2}e or more, estimate the emissions from each process vent, considering controls, using
the methods in § 98.123(c)(1). You must characterize the emissions of any process vent that emits 25,000 metric
tons CO_{2}e or more as specified in § 98.124(b)(4).

(ii) For other vents, including vents from processes that emit less than 25,000 metric
tons CO_{2}e, you must characterize emissions as specified in § 98.124(b)(5).

(iii) For fluorine emissions that are not accounted for by vent estimates, you must characterize emissions as specified in § 98.124(b)(6).

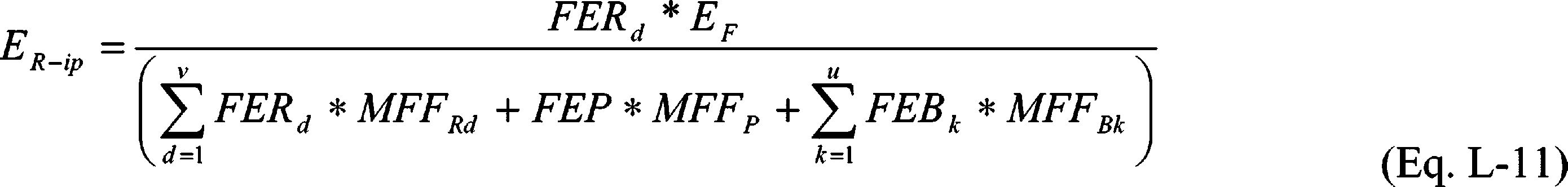

(9) The total mass of fluorine-containing reactant d emitted must be estimated at
least monthly based on the total fluorine emitted and the fraction that consists of
fluorine-containing reactants using Equation L–11 of this section. If the fluorine-containing reactant d is a non–GHG, you may assume that FER_{d} is zero.

Where:

E_{R–ip} = Total mass of fluorine-containing reactant d that is emitted from process i over
the period p (metric tons).

FER_{d} = The fraction of the mass emitted that consists of the fluorine-containing reactant
d.

E_{F} = Total mass of fluorine emissions from process i over the period p (metric tons),
calculated in Equation L–6 of this section.

FEP = The fraction of the mass emitted that consists of the fluorine-containing product.

FEB_{k} = The fraction of the mass emitted that consists of fluorine-containing by-product
k.

MFF_{Rd} = Mass fraction of fluorine in reactant d, calculated in Equation L–14 of this section.

MFF_{P} = Mass fraction of fluorine in the product, calculated in Equation L–15 of this section.

MFF_{Bk} = Mass fraction of fluorine in by-product k, calculation in Equation L–16 of this
section.

u = Number of fluorine-containing by-products generated in process i.

v = Number of fluorine-containing reactants fed into process i.

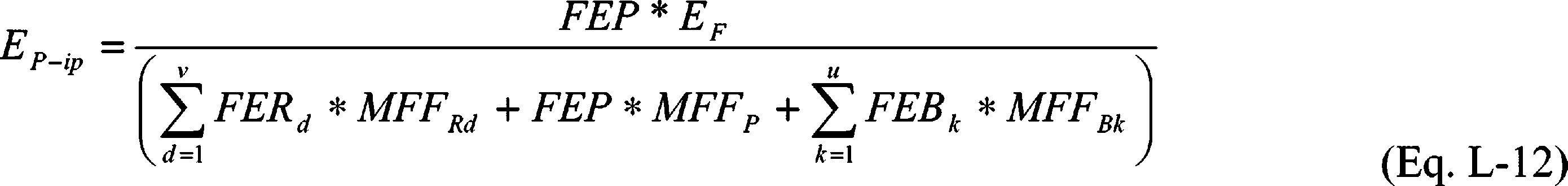

(10) The total mass of fluorine-containing product emitted must be estimated at least monthly based on the total fluorine emitted and the fraction that consists of fluorine-containing products using Equation L–12 of this section. If the fluorine-containing product is a non–GHG, you may assume that FEP is zero.

Where:

E_{P–ip} = Total mass of fluorine-containing product emitted from process i over the period
p (metric tons).

FEP = The fraction of the mass emitted that consists of the fluorine-containing product.

E_{F} = Total mass of fluorine emissions from process i over the period p (metric tons),
calculated in Equation L–6 of this section.

FER_{d} = The fraction of the mass emitted that consists of fluorine-containing reactant
d.

FEB_{k} = The fraction of the mass emitted that consists of fluorine-containing by-product
k.

MFF_{Rd} = Mass fraction of fluorine in reactant d, calculated in Equation L–14 of this section.

MFF_{P} = Mass fraction of fluorine in the product, calculated in Equation L–15 of this section.

MFF_{Bk} = Mass fraction of fluorine in by-product k, calculation in Equation L–16 of this
section.

u = Number of fluorine-containing by-products generated in process i.

v = Number of fluorine-containing reactants fed into process i.

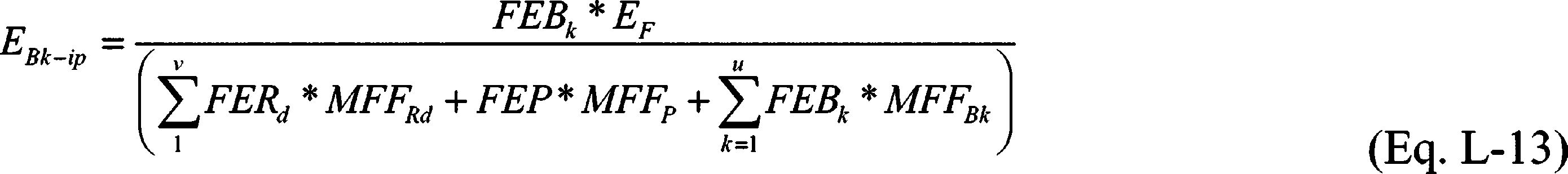

(11) The total mass of fluorine-containing by-product k emitted must be estimated
at least monthly based on the total fluorine emitted and the fraction that consists
of fluorine-containing by-products using Equation L–13 of this section. If fluorine-containing by-product k is a non–GHG, you may assume that FEB_{k} is zero.

Where:

E_{Bk-ip} = Total mass of fluorine-containing by-product k emitted from process i over the
period p (metric tons).

FEB_{k} = The fraction of the mass emitted that consists of fluorine-containing by-product
k.

FER_{d} = The fraction of the mass emitted that consists of fluorine-containing reactant
d.

FEP = The fraction of the mass emitted that consists of the fluorine-containing product.

E_{F} = Total mass of fluorine emissions from process i over the period p (metric tons),
calculated in Equation L–6 of this section.

MFF_{Rd} = Mass fraction of fluorine in reactant d, calculated in Equation L–14 of this section.

MFF_{P} = Mass fraction of fluorine in the product, calculated in Equation L–15 of this section.

MFF_{Bk} = Mass fraction of fluorine in by-product k, calculation in Equation L–16 of this
section.

u = Number of fluorine-containing by-products generated in process i.

v = Number of fluorine-containing reactants fed into process i.

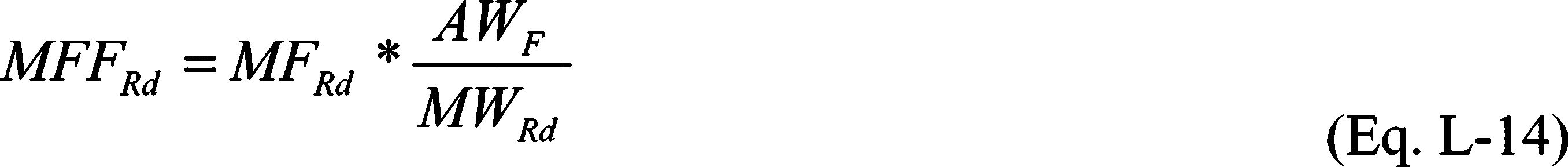

(12) The mass fraction of fluorine in reactant d must be estimated using Equation L–14 of this section:

Where:

MFF_{Rd} = Mass fraction of fluorine in reactant d (fraction).

MF_{Rd} = Moles fluorine per mole of reactant d.

AW_{F} = Atomic weight of fluorine.

MW_{Rd} = Molecular weight of reactant d.

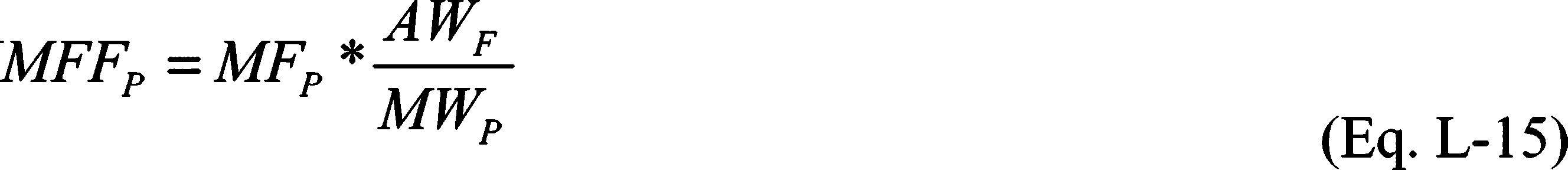

(13) The mass fraction of fluorine in the product must be estimated using Equation L–15 of this section:

Where:

MFF_{P} = Mass fraction of fluorine in the product (fraction).

MF_{P} = Moles fluorine per mole of product.

AW_{F} = Atomic weight of fluorine.

MW_{P} = Molecular weight of the product produced.

(14) The mass fraction of fluorine in by-product k must be estimated using Equation L–16 of this section:

Where:

MFF_{Bk} = Mass fraction of fluorine in the product (fraction).

MF_{Bk} = Moles fluorine per mole of by-product k.

AW_{F} = Atomic weight of fluorine.

MW_{Bk} = Molecular weight of by-product k.

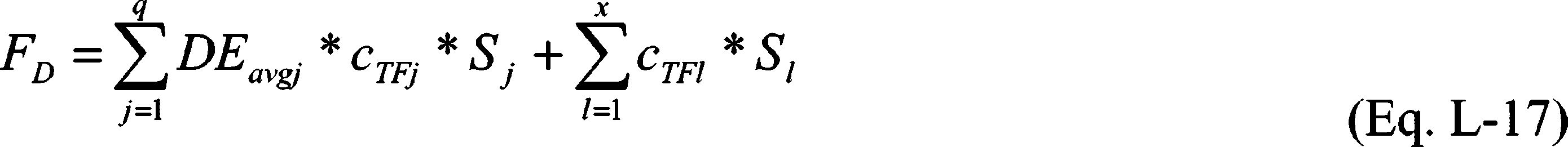

(15) Alternative for determining the mass of fluorine destroyed or recaptured. As an alternative to using Equation L–7 of this section as provided in paragraph (b)(4) of this section, you may estimate at least monthly the total mass of fluorine in destroyed or recaptured streams containing fluorine-containing compounds (including all fluorine-containing reactants, products, and byproducts) using Equation L–17 of this section.

Where:

F_{D} = Total mass of fluorine in destroyed or recaptured streams from process i containing
fluorine-containing reactants, products, and by-products over the period p.

DE_{avgj} = Weighted average destruction efficiency of the destruction device for the fluorine-containing
compounds identified in destroyed stream j under § 98.124(b)(4)(ii) and (5)(ii) (calculated in Equation L–18 of this section)(fraction).

c_{TFj} = Concentration (mass fraction) of total fluorine in stream j removed from process
i and fed into the destruction device over the period p. If this concentration is
only a trace concentration, c_{TFj} is equal to zero.

S_{j} = Mass removed in stream j from process i and fed into the destruction device over
the period p (metric tons).

c_{TFl} = Concentration (mass fraction) of total fluorine in stream l removed from process
i and recaptured over the period p. If this concentration is only a trace concentration,
c_{Bkl} is equal to zero.

S_{l} = Mass removed in stream l from process i and recaptured over the period p.

q = Number of streams destroyed in process i.

x = Number of streams recaptured in process i.

(16) Weighted average destruction efficiency. For purposes of Equation L–17 of this section, calculate the weighted average destruction efficiency applicable to a destroyed stream using Equation L–18 of this section.

Where:

DE_{avgj} = Weighted average destruction efficiency of the destruction device for the fluorine-containing
compounds identified in destroyed stream j under 98.124(b)(4)(ii) or (b)(5)(ii), as
appropriate.

DE_{FGHGf} = Destruction efficiency of the device that has been demonstrated for fluorinated
GHG f in stream j (fraction).

c_{FGHGfj} = Concentration (mass fraction) of fluorinated GHG f in stream j removed from process
i and fed into the destruction device over the period p. If this concentration is
only a trace concentration, c_{F–GHGfj} is equal to zero.

c_{FCgj} = Concentration (mass fraction) of non–GHG fluorine-containing compound g in stream
j removed from process i and fed into the destruction device over the period p. If
this concentration is only a trace concentration, c_{FCgj} is equal to zero.

_{j} = Mass removed in stream j from process i and fed into the destruction device over
the period p (metric tons).

MFF_{FGHGf} = Mass fraction of fluorine in fluorinated GHG f, calculated in Equation L–14, L–15,
or L–16 of this section, as appropriate.

MFF_{FCg} = Mass fraction of fluorine in non–GHG fluorine-containing compound g, calculated
in Equation L–14, L–15, or L–16 of this section, as appropriate.

w = Number of fluorinated GHGs in destroyed stream j.

y = Number of non–GHG fluorine-containing compounds in destroyed stream j.

2. Mass Balance Method for § 98.124(b). [Note: Numbering convention here matches original rule text, 75 FR 74774, December 1, 2010.]

(b) Mass balance monitoring. If you determine fluorinated GHG emissions from any process using the mass balance method under § 98.123(b), you must estimate the total mass of each fluorinated GHG emitted from that process at least monthly. Only streams that contain greater than trace concentrations of fluorine-containing reactants, products, or by-products must be monitored under this paragraph. If you use an element other than fluorine in the mass-balance equation pursuant to § 98.123(b)(3), substitute that element for fluorine in the monitoring requirements of this paragraph.

(1) Mass measurements. Measure the following masses on a monthly or more frequent basis using flowmeters, weigh scales, or a combination of volumetric and density measurements with accuracies and precisions that allow the facility to meet the error criteria in § 98.123(b)(1):

(i) Total mass of each fluorine-containing product produced. Account for any used fluorine-containing product added into the production process upstream of the output measurement as directed at §§ 98.413(b) and 98.414(b). For each product, the mass produced used for the mass-balance calculation must be the same as the mass produced that is reported under subpart OO of this part, where applicable.

(ii) Total mass of each fluorine-containing reactant fed into the process.

(iii) The mass removed from the process in each stream fed into the destruction device.

(iv) The mass removed from the process in each recaptured stream.

(2) Concentration measurements for use with § 98.123(b)(4). If you use § 98.123(b)(4) to estimate the mass of fluorine in destroyed or recaptured streams, measure the following concentrations at least once each calendar month during which the process is operating, on a schedule to ensure that the measurements are representative of the full range of process conditions (e.g., catalyst age). Measure more frequently if this is necessary to meet the error criteria in § 98.123(b)(1). Use equipment and methods (e.g., gas chromatography) that comply with paragraph (e) of this section and that have an accuracy and precision that allow the facility to meet the error criteria in § 98.123(b)(1). Only fluorine-containing reactants, products, and by-products that occur in a stream in greater than trace concentrations must be monitored under this paragraph.

(i) The concentration (mass fraction) of the fluorine-containing product in each stream that is fed into the destruction device.

(ii) The concentration (mass fraction) of each fluorine-containing by-product in each stream that is fed into the destruction device.

(iii) The concentration (mass fraction) of each fluorine-containing reactant in each stream that is fed into the destruction device.

(iv) The concentration (mass fraction) of each fluorine-containing by-product in each
stream that is recaptured (c_{Bkl}).

(3) Concentration measurements for use with § 98.123(b)(15). If you use § 98.123(b)(15) to estimate the mass of fluorine in destroyed or recaptured streams, measure the concentrations listed in paragraphs (b)(3)(i) and (ii) of this section at least once each calendar month during which the process is operating, on a schedule to ensure that the measurements are representative of the full range of process conditions (e.g., catalyst age). Measure more frequently if this is necessary to meet the error criteria in § 98.123(b)(1). Use equipment and methods (e.g., gas chromatography) that comply with paragraph (e) of this section and that have an accuracy and precision that allow the facility to meet the error criteria in § 98.123(b)(1). Only fluorine-containing reactants, products, and by-products that occur in a stream in greater than trace concentrations must be monitored under this paragraph.

(i) The concentration (mass fraction) of total fluorine in each stream that is fed into the destruction device.

(ii) The concentration (mass fraction) of total fluorine in each stream that is recaptured.

(4) Emissions characterization: process vents emitting 25,000 metric tons CO2 e or
more. To characterize emissions from any process vent emitting 25,000 metric tons CO_{2}e or more, comply with paragraphs (b)(4)(i) through (b)(4)(v) of this section, as
appropriate. Only fluorine-containing reactants, products, and by-products that occur in a stream
in greater than trace concentrations must be monitored under this paragraph.

(i) Uncontrolled emissions. If emissions from the process vent are not routed through a destruction device, sample and analyze emissions at the process vent or stack or sample and analyze emitted streams before the process vent. If the process has more than one operating scenario, you must either perform the emission characterization for each operating scenario or perform the emission characterization for the operating scenario that is expected to have the largest emissions and adjust the emission characterization for other scenarios using engineering calculations and assessments as specified in § 98.123(c)(4). To perform the characterization, take three samples under conditions that are representative for the operating scenario. Measure the concentration of each fluorine-containing compound in each sample. Use equipment and methods that comply with paragraph (e) of this section. Calculate the average concentration of each fluorine-containing compound across all three samples.

(ii) Controlled emissions using § 98.123(b)(15). If you use § 98.123(b)(15) to estimate the total mass of fluorine in destroyed or recaptured streams, and if the emissions from the process vent are routed through a destruction device, characterize emissions as specified in paragraph (b)(4)(i) of this section before the destruction device. Apply the destruction efficiency demonstrated for each fluorinated GHG in the destroyed stream to that fluorinated GHG. Exclude from the characterization fluorine-containing compounds that are not fluorinated GHGs.

(iii) Controlled emissions using § 98.123(b)(4). If you use § 98.123(b)(4) to estimate the mass of fluorine in destroyed or recaptured streams, and if the emissions from the process vent are routed through a destruction device, characterize the process vent's emissions monthly (or more frequently) using the monthly (or more frequent) measurements under paragraphs (b)(1)(iii) and (b)(2)(i) through (iii) of this section. Apply the destruction efficiency demonstrated for each fluorinated GHG in the destroyed stream to that fluorinated GHG. Exclude from the characterization fluorine-containing compounds that are not fluorinated GHGs.

(iv) Emissions characterization frequency. You must repeat emission characterizations performed under paragraph (b)(4)(i) and (ii) of this section under paragraph (b)(4)(iv)(A) or (B) of this section, whichever occurs first:

(A) 10–year revision. Repeat the emission characterization every 10 years. In the calculations under § 98.123, apply the revised emission characterization to the process activity that occurs after the revision.

(B) Operating scenario change that affects the emission characterization. For planned operating scenario changes, you must estimate and compare the emission calculation factors for the changed operating scenario and for the original operating scenario whose process vent specific emission factor was measured. Use the engineering calculations and assessments specified in § 98.123(c)(4). If the share of total fluorine-containing compound emissions represented by any fluorinated GHG changes under the changed operating scenario by 15 percent or more of the total, relative to the previous operating scenario (this includes the cumulative change in the emission calculation factor since the last emissions test), you must repeat the emission characterization. Perform the emission characterization before February 28 of the year that immediately follows the change. In the calculations under § 98.123, apply the revised emission characterization to the process activity that occurs after the operating scenario change.

(v) Subsequent measurements. If a process vent with fluorinated GHG emissions less than 25,000 metric tons CO_{2}e, per § 98.123(c)(2), is later found to have fluorinated GHG emissions of 25,000 metric tons CO_{2}e or greater, you must perform an emission characterization under this paragraph during
the following year.

(5) Emissions characterization: Process vents emitting less than 25,000 metric tons
CO2 e. To characterize emissions from any process vent emitting less than 25,000 metric
tons CO_{2}e, comply with paragraphs (b)(5)(i) through (iii) of this section, as appropriate. Only fluorine-containing reactants, products, and by-products that occur in a stream
in greater than trace concentrations must be monitored under this paragraph.

(i) Uncontrolled emissions. If emissions from the process vent are not routed through a destruction device, emission measurements must consist of sampling and analysis of emissions at the process vent or stack, sampling and analysis of emitted streams before the process vent, previous test results, provided the tests are representative of current operating conditions of the process, or bench-scale or pilot-scale test data representative of the process operating conditions.

(ii) Controlled emissions using § 98.123(b)(15). If you use § 98.123(b)(15) to estimate the total mass of fluorine in destroyed or recaptured streams, and if the emissions from the process vent are routed through a destruction device, characterize emissions as specified in paragraph (b)(5)(i) of this section before the destruction device. Apply the destruction efficiency demonstrated for each fluorinated GHG in the destroyed stream to that fluorinated GHG. Exclude from the characterization fluorine-containing compounds that are not fluorinated GHGs.

(iii) Controlled emissions using § 98.123(b)(4). If you use § 98.123(b)(4) to estimate the mass of fluorine in destroyed or recaptured streams, and if the emissions from the process vent are routed through a destruction device, characterize the process vent's emissions monthly (or more frequently) using the monthly (or more frequent) measurements under paragraphs (b)(1)(iii) and (b)(2)(i) through (iii) of this section. Apply the destruction efficiency demonstrated for each fluorinated GHG in the destroyed stream to that fluorinated GHG. Exclude from the characterization fluorine-containing compounds that are not fluorinated GHGs.

(6) Emissions characterization: Emissions not accounted for by process vent estimates. Calculate the weighted average emission characterization across the process vents before any destruction devices. Apply the weighted average emission characterization for all the process vents to any fluorine emissions that are not accounted for by process vent estimates.

(7) Impurities in reactants. If any fluorine-containing impurity is fed into a process along with a reactant (or other input) in greater than trace concentrations, this impurity shall be monitored under this section and included in the calculations under § 98.123 in the same manner as reactants fed into the process, fed into the destruction device, recaptured, or emitted, except the concentration of the impurity in the mass fed into the process shall be measured, and the mass of the impurity fed into the process shall be calculated as the product of the concentration of the impurity and the mass fed into the process. The mass of the reactant fed into the process may be reduced to account for the mass of the impurity.

(8) Alternative to error calculation. As an alternative to calculating the relative and absolute errors associated with the estimate of emissions under § 98.123(b), you may comply with the precision, accuracy, measurement and calculation frequency, and fluorinated GHG throughput requirements of paragraph (b)(8)(i) through (iv) of this section.

(i) Mass measurements. Measure the masses specified in paragraph (b)(1) of this section using flowmeters, weigh scales, or a combination of volumetric and density measurements with accuracies and precisions of ±0.2 percent of full scale or better.

(ii) Concentration measurements. Measure the concentrations specified in paragraph (b)(2) or (3) of this section, as applicable, using analytical methods with accuracies and precisions of ±10 percent or better.

(iii) Measurement and calculation frequency. Perform the mass measurements specified in paragraph (b)(1) of this section and the concentration measurements specified in paragraph (b)(2) or (3) of this section, as applicable, at least weekly, and calculate emissions at least weekly.

(iv) Fluorinated–GHG throughput limit. You may use the alternative to the error calculation specified in paragraph (b)(8)
of this section only if the total annual CO_{2}-equivalent fluorinated GHG throughput of the process is 500,000 mtCO_{2}e or less. The total throughput is the sum of the masses of the fluorinated GHG reactants,
products, and by-products fed into and generated by the process. To convert these masses to CO_{2}e, use Equation A–1 of § 98.2. For fluorinated GHGs whose GWPs are not listed in Table A–1 to subpart A of this
part, use a default GWP of 2,000.

Cite this article: FindLaw.com - Code of Federal Regulations Title 40. Protection of Environment 40 CFR Pt. 98, Subpt. L, App. A Appendix A to Subpart L of Part 98—Mass Balance Method for Fluorinated Gas Production - *last updated October 02, 2022*
| https://codes.findlaw.com/cfr/title-40-protection-of-environment/cfr-pt-40-98-subpt-l-app-a/

FindLaw Codes may not reflect the most recent version of the law in your jurisdiction. Please verify the status of the code you are researching with the state legislature or via Westlaw before relying on it for your legal needs.

Was this helpful?

A free source of state and federal court opinions, state laws, and the United States Code. For more information about the legal concepts addressed by these cases and statutes, visit FindLaw's Learn About the Law.

Get help with your legal needs

FindLaw’s Learn About the Law features thousands of informational articles to help you understand your options. And if you’re ready to hire an attorney, find one in your area who can help.

Search our directory by legal issue

Enter information in one or both fields (Required)

Copied to clipboard
