Code of Federal Regulations Title 29. Labor § 29.1910.269—Flow Charts
Current as of January 02, 2025 | Updated by Findlaw Staff

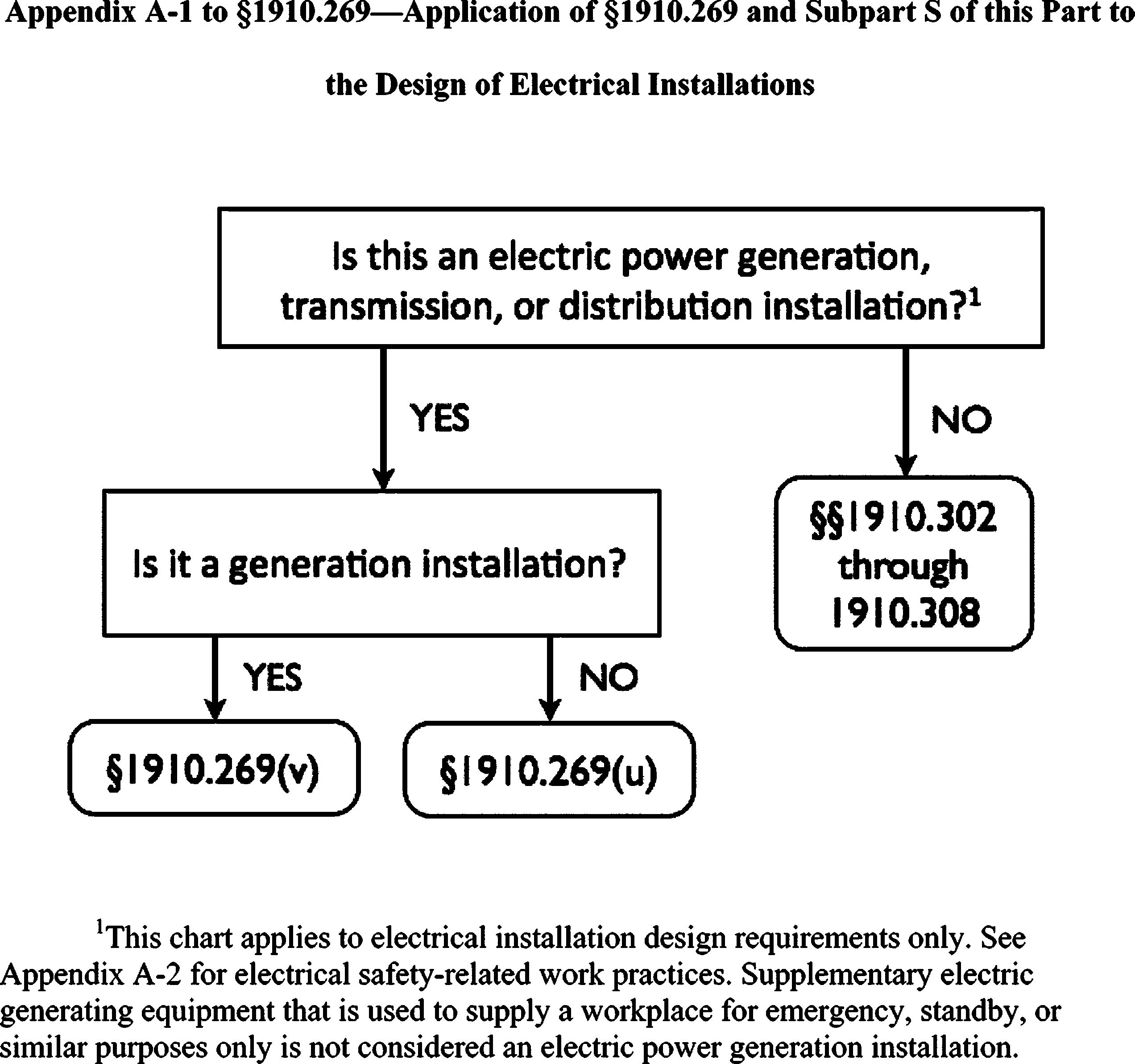

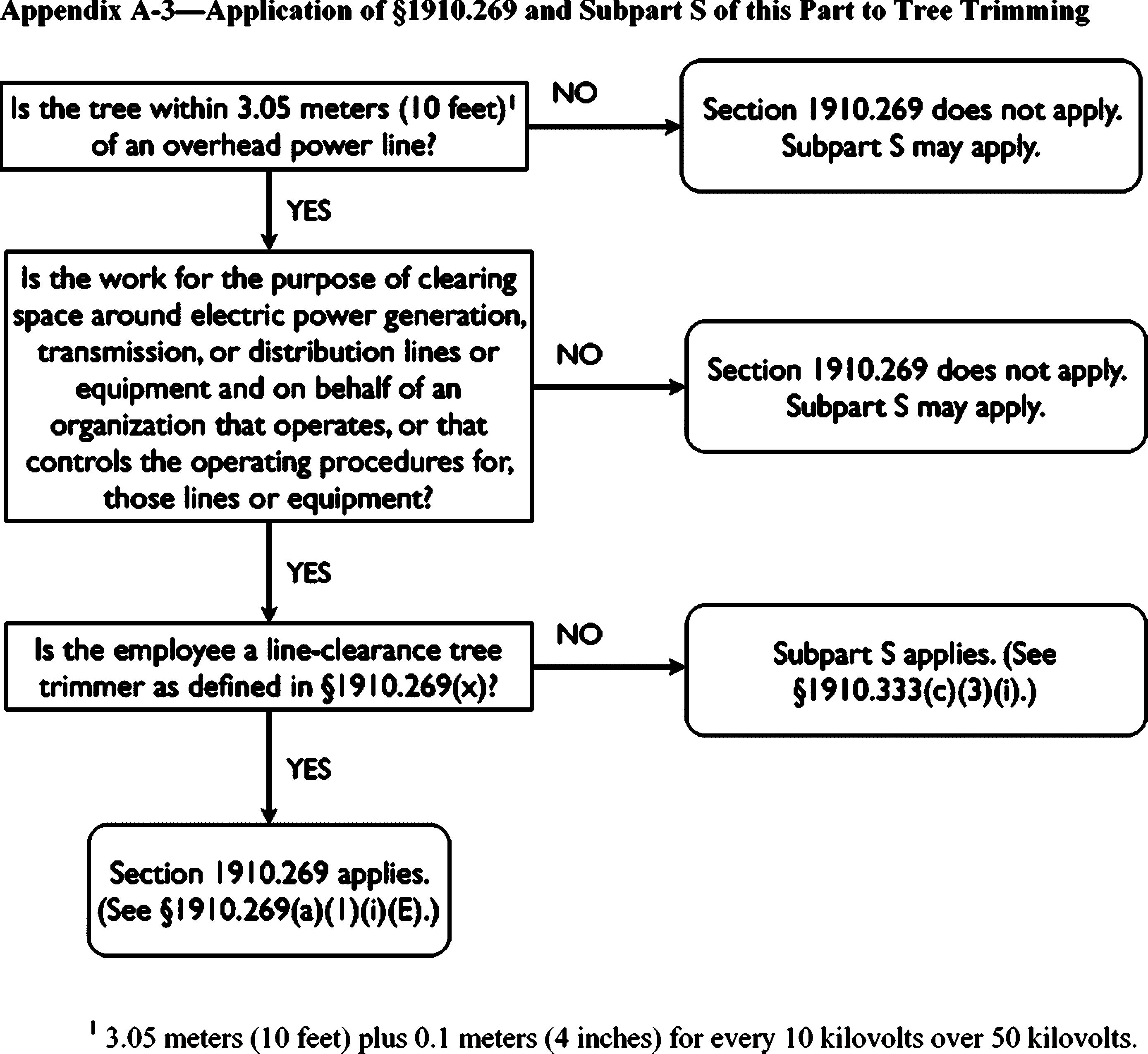

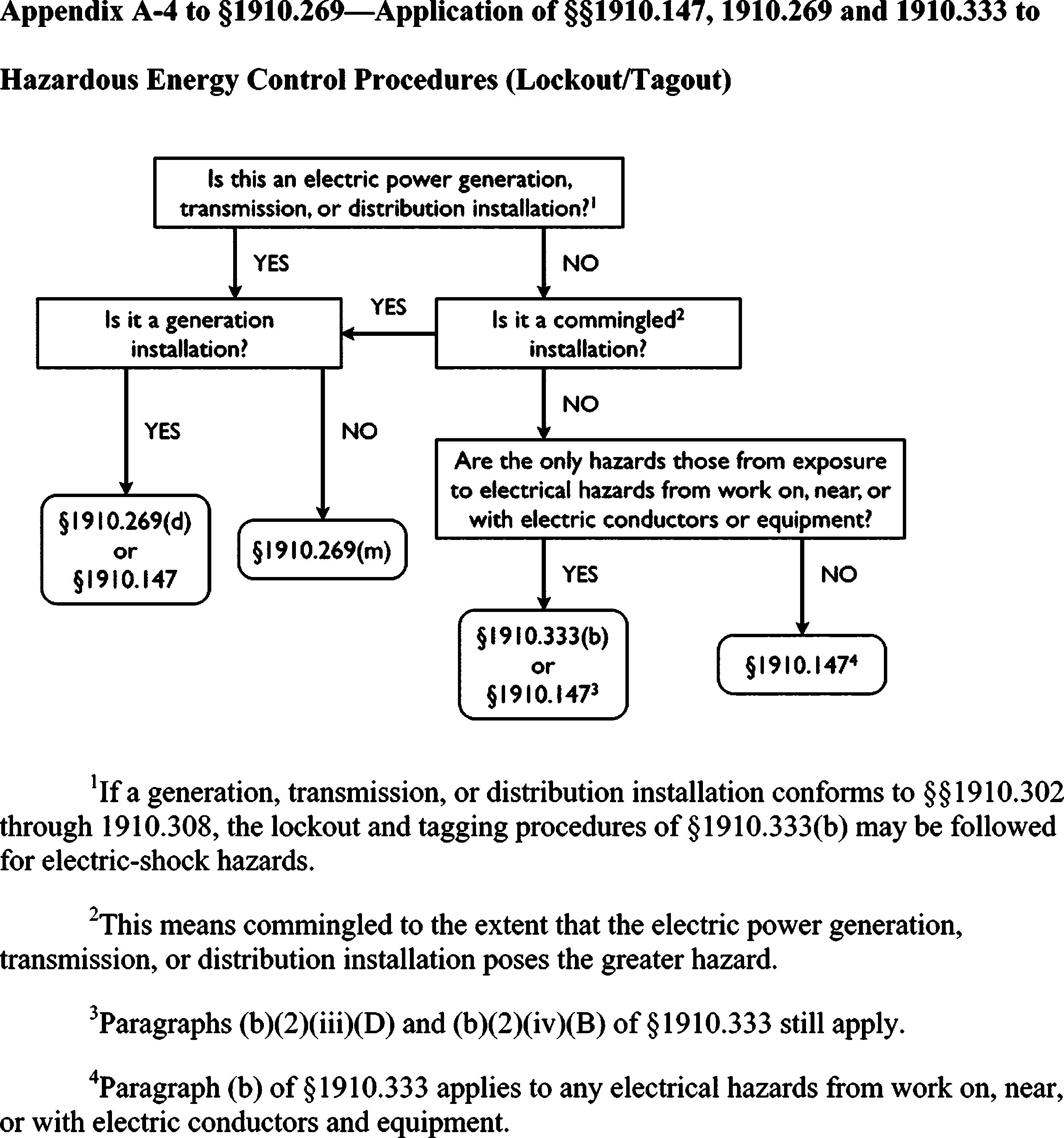

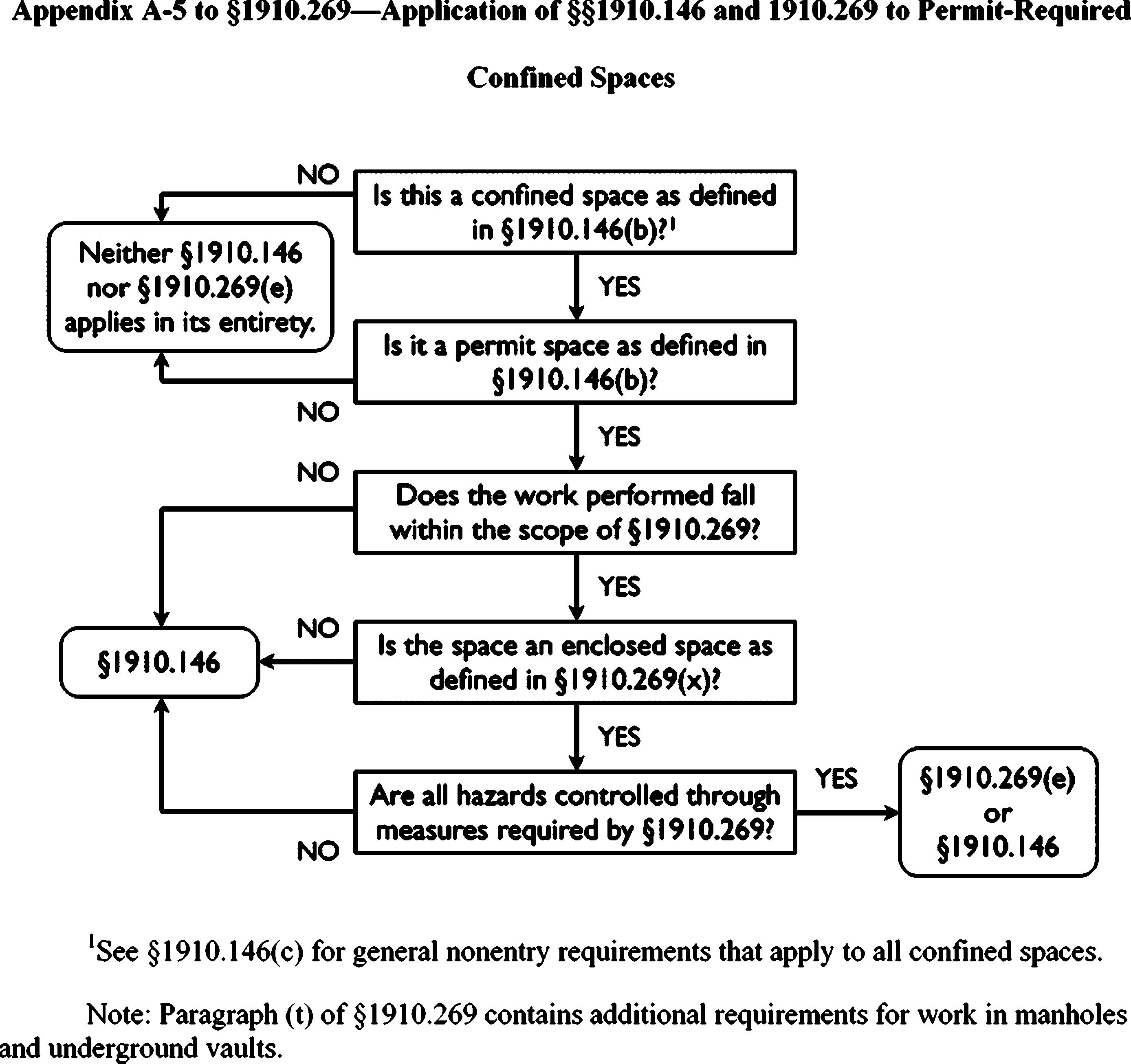

This appendix presents information, in the form of flow charts, that illustrates the scope and application of § 1910.269. This appendix addresses the interface between § 1910.269 and Subpart S of this Part (Electrical), between § 1910.269 and § 1910.146 (Permit-required confined spaces), and between § 1910.269 and § 1910.147 (The control of hazardous energy (lockout/tagout)). These flow charts provide guidance for employers trying to implement the requirements of § 1910.269 in combination with other General Industry Standards contained in Part 1910. Employers should always consult the relevant standards, in conjunction with this appendix, to ensure compliance with all applicable requirements.
|

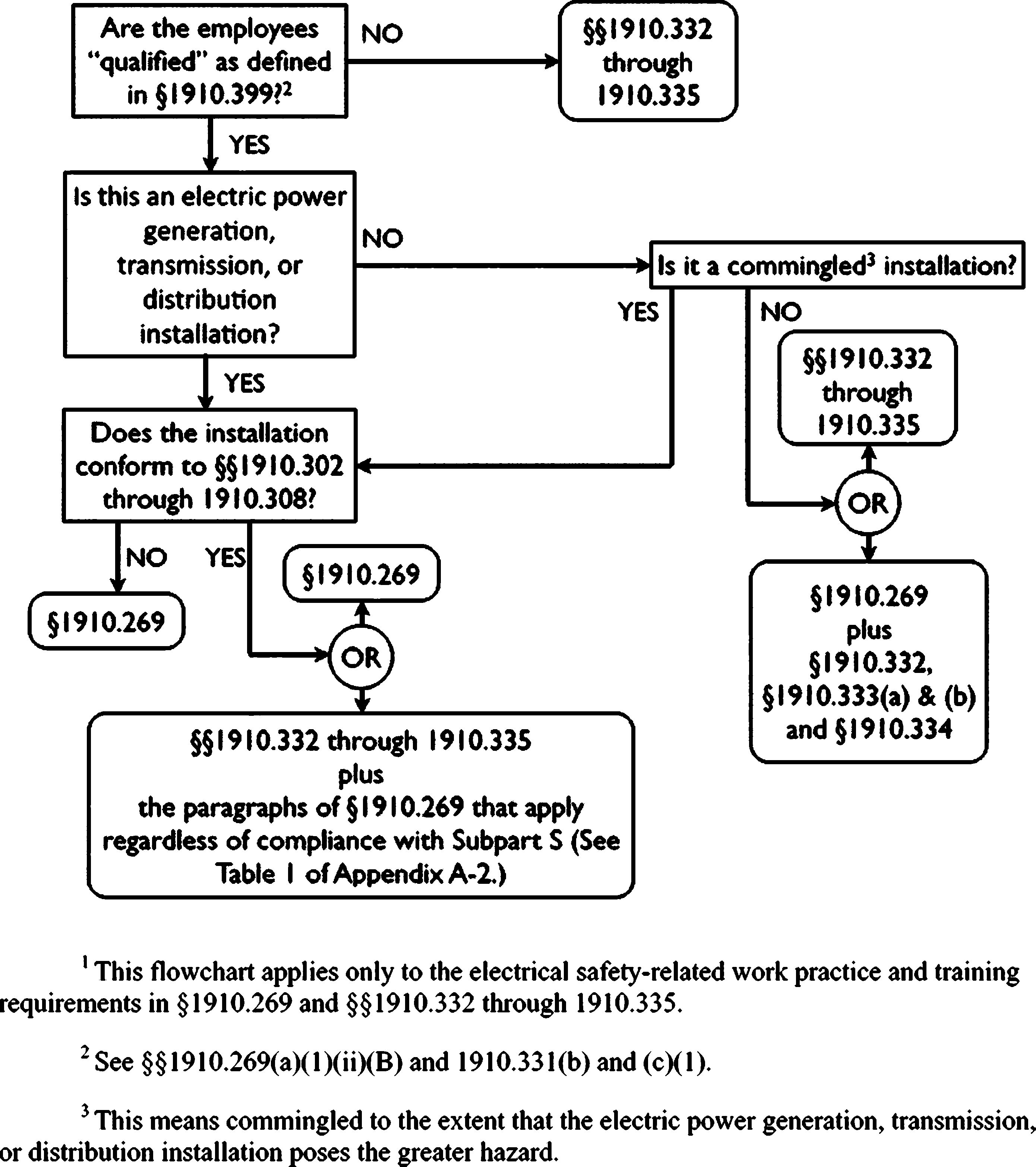

Table 1—Electrical Safety Requirements in § 1910.269 |
|
|
Compliance with Subpart S will comply with these paragraphs of § 1910.269 1 |
Paragraphs that apply regardless of compliance with Subpart S 2 |
|
(d), electric-shock hazards only․․․․․․․․․․․․․․․․․ |
(a)(2), (a)(3) and (a)(4). |
|
(h)(3)․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(b) |
|
(i)(2) and (i)(3)․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(c) |
|
(k)․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(d), for other than electric-shock hazards. |
|
(l)(1) through (l)(5), (l)(7), and (l)(10) through (l)(12) |
(e) |
|
(m)․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(f) |
|
(p)(4)․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(g) |
|
(s)(2)․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(h)(1) and (h)(2). |
|
(u)(1) and (u)(3) through (u)(5)․․․․․․․․․․․․․․․․․ |
(i)(4) |
|
(v)(3) through (v)(5)․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(j) |
|
(w)(1) and (w)(7)․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(l)(6), (l)(8) and (l)(9). |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(n) |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(o) |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(p)(1) through (p)(3). |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(q) |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(r) |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(s)(1) |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(t) |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(u)(2) and (u)(6) |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(v)(1), (v)(2), and (v)(6) through (v)(12). |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
(w)(2) through (w)(6), (w)(8), and (w)(9). |
1 If the electrical installation meets the requirements of §§ 1910.302 through 1910.308 of this part, then the electrical installation and any associated electrical safety-related work practices conforming to §§ 1910.332 through 1910.335 of this part are considered to comply with these provisions of § 1910.269 of this part.
2 These provisions include electrical safety and other requirements that must be met regardless of compliance with subpart S of this part.
