I. Values of A1 and A2 for individual radionuclides, which are the bases for many activity limits elsewhere in these regulations, are given in Table A–1. The curie (Ci) values specified are obtained by converting from the Terabecquerel (TBq) value. The Terabecquerel values are the regulatory standard. The curie values are for information only and are not intended to be the regulatory standard. Where values of A1 and A2 are unlimited, it is for radiation control purposes only. For nuclear criticality safety, some materials are subject to controls placed on fissile material.
II. a. For individual radionuclides whose identities are known, but which are not listed in Table A–1, the A1 and A2 values contained in Table A–3 may be used. Otherwise, the licensee shall obtain prior Commission approval of the A1 and A2 values for radionuclides not listed in Table A–1, before shipping the material.
b. For individual radionuclides whose identities are known, but which are not listed in Table A–2, the exempt material activity concentration and exempt consignment activity values contained in Table A–3 may be used. Otherwise, the licensee shall obtain prior Commission approval of the exempt material activity concentration and exempt consignment activity values for radionuclides not listed in Table A–2, before shipping the material.
c. The licensee shall submit requests for prior approval, described under paragraphs II.a. and II.b. of this Appendix, to the Commission, in accordance with § 71.1 of this part.
III. In the calculations of A1 and A2 for a radionuclide not in Table A–1, a single radioactive decay chain, in which radionuclides are present in their naturally occurring proportions, and in which no daughter radionuclide has a half-life either longer than 10 days, or longer than that of the parent radionuclide, shall be considered as a single radionuclide, and the activity to be taken into account, and the A1 and A2 value to be applied, shall be those corresponding to the parent radionuclide of that chain. In the case of radioactive decay chains in which any daughter radionuclide has a half-life either longer than 10 days, or greater than that of the parent radionuclide, the parent and those daughter radionuclides shall be considered as mixtures of different radionuclides.
IV. For mixtures of radionuclides whose identities and respective activities are known, the following conditions apply:

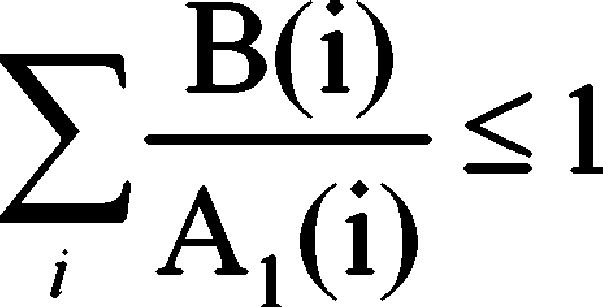

a. For special form radioactive material, the maximum quantity transported in a Type A package is as follows:
where B(i) is the activity of radionuclide i in special form, and A1 (i) is the A1 value for radionuclide i.

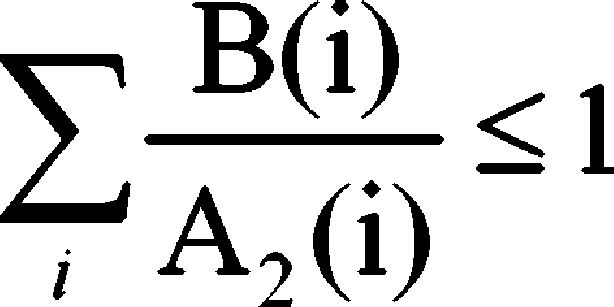

b. For normal form radioactive material, the maximum quantity transported in a Type A package is as follows:
where B(i) is the activity of radionuclide i in normal form, and A2 (i) is the A2 value for radionuclide i.

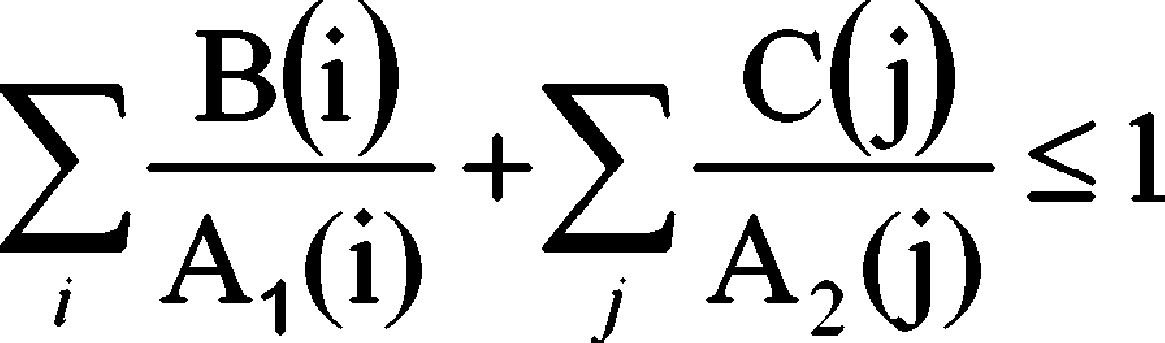

c. If the package contains both special and normal form radioactive material, the activity that may be transported in a Type A package is as follows:
where B(i) is the activity of radionuclide i as special form radioactive material, A1 (i) is the A1 value for radionuclide i, C(j) is the activity of radionuclide j as normal form radioactive material, and A2 (j) is the A2 value for radionuclide j.

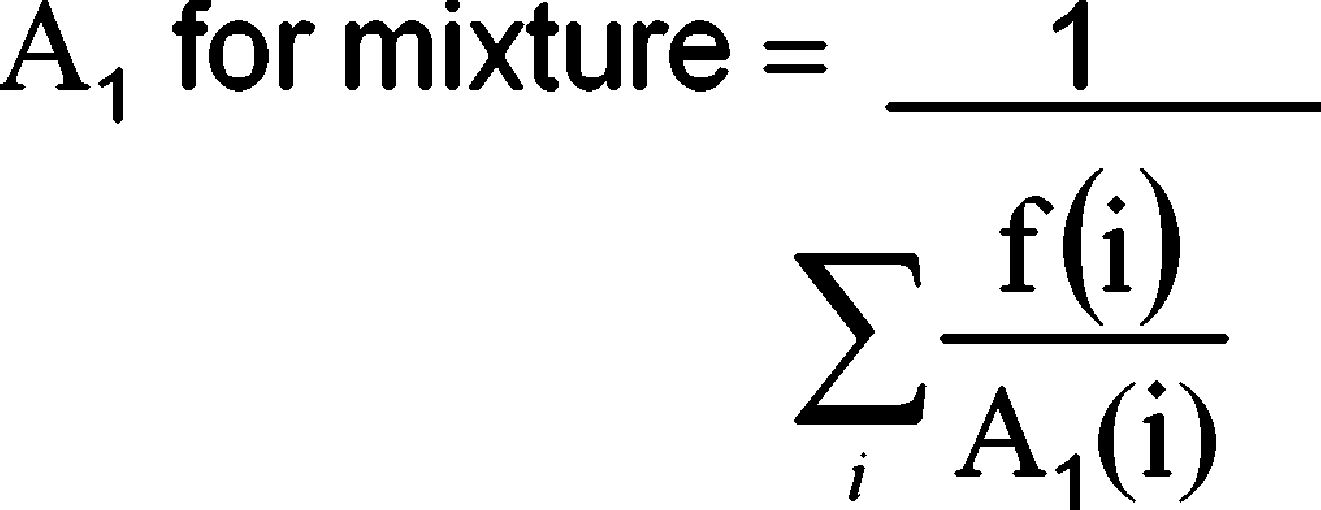

d. Alternatively, the A1 value for mixtures of special form material may be determined as follows:
where f(i) is the fraction of activity for radionuclide i in the mixture and A1 (i) is the appropriate A1 value for radionuclide i.

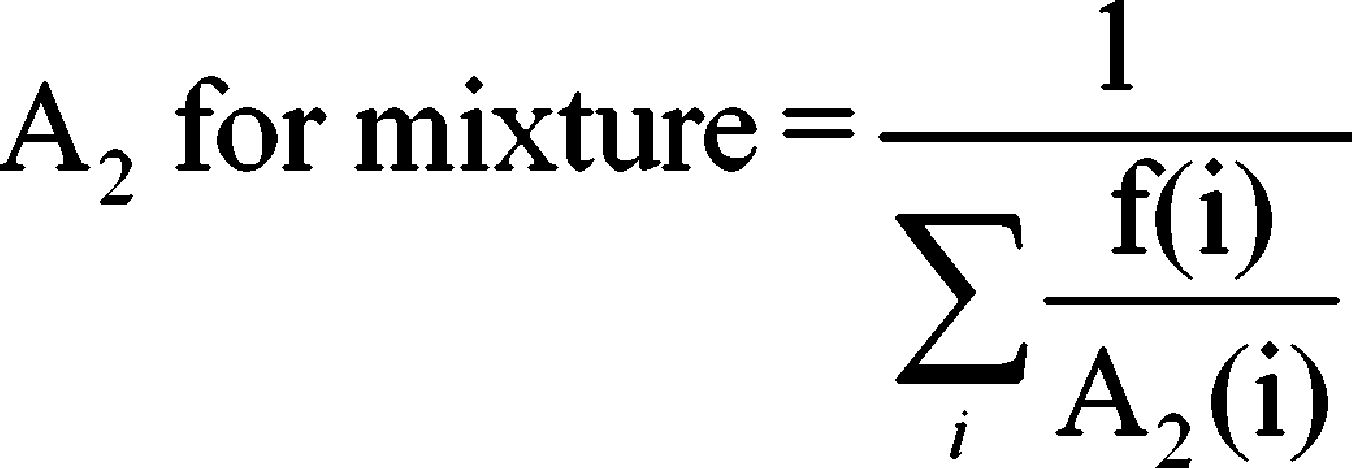

e. Alternatively, the A2 value for mixtures of normal form material may be determined as follows:
where f(i) is the fraction of activity for radionuclide i in the mixture and A2 (i) is the appropriate A2 value for radionuclide i.

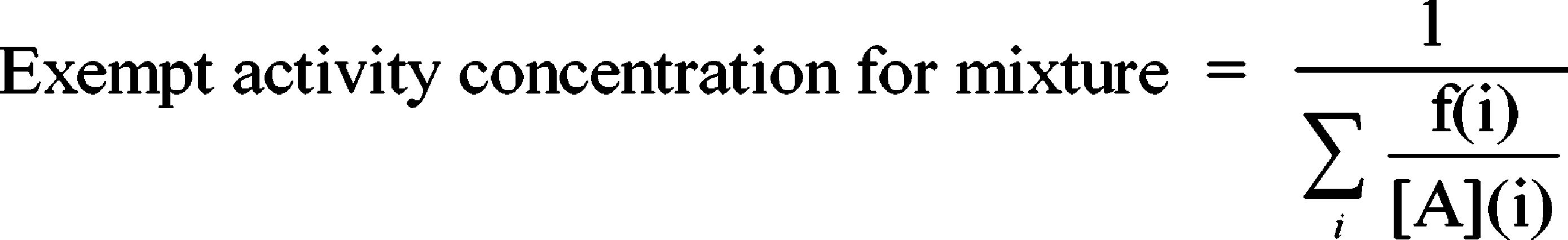

f. The exempt activity concentration for mixtures of nuclides may be determined as follows:
where f(i) is the fraction of activity concentration of radionuclide i in the mixture and [A](i) is the activity concentration for exempt material containing radionuclide i.

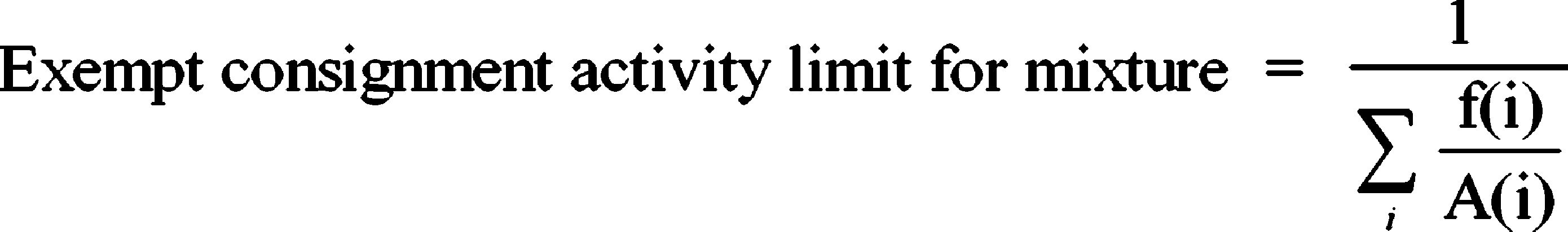

g. The activity limit for an exempt consignment for mixtures of radionuclides may be determined as follows:
where f(i) is the fraction of activity of radionuclide i in the mixture and A(i) is the activity limit for exempt consignments for radionuclide i.
V.a. When the identity of each radionuclide is known, but the individual activities of some of the radionuclides are not known, the radionuclides may be grouped, and the lowest A1 or A2 value, as appropriate, for the radionuclides in each group may be used in applying the formulas in paragraph IV. Groups may be based on the total alpha activity and the total beta/gamma activity when these are known, using the lowest A1 or A2 values for the alpha emitters and beta/gamma emitters.
b. When the identity of each radionuclide is known but the individual activities of some of the radionuclides are not known, the radionuclides may be grouped and the lowest [A] (activity concentration for exempt material) or A (activity limit for exempt consignment) value, as appropriate, for the radionuclides in each group may be used in applying the formulas in paragraph IV of this appendix. Groups may be based on the total alpha activity and the total beta/gamma activity when these are known, using the lowest [A] or A values for the alpha emitters and beta/gamma emitters, respectively.
|
Table A–1—A1 and A2 Values For Radionuclides |
|||||||
|---|---|---|---|---|---|---|---|
|
Specific activity |
|||||||
|
Symbol of radionuclide |
Element and atomic number |
A1 (TBq) |
A1 (Ci) b |
A2 (TBq) |
A2 (Ci) b |
(TBq/g) |
(Ci/g) |
|
Ac-225 (a) |
Actinium (89)․․․․․․․․ |
8.0x10−1 |
2.2x101 |
6.0x10−3 |
1.6x10−1 |
2.1x103 |
5.8x104 |
|
Ac-227 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0x10−1 |
2.4x101 |
9.0x10−5 |
2.4x10−3 |
2.7 |
7.2x101 |
|
Ac-228․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
5.0x10−1 |
1.4x101 |
8.4x104 |
2.2x106 |
|
Ag-105․․․․․․․․․ |
Silver (47)․․․․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
1.1x103 |
3.0x104 |
|
Ag-108m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
7.0x10−1 |
1.9x101 |
9.7x10−1 |
2.6x101 |
|
Ag-110m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
1.8x102 |
4.7x103 |
|
Ag-111․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
6.0x10−1 |
1.6x101 |
5.8x103 |
1.6x105 |
|
Al-26․․․․․․․․․․ |
Aluminum (13)․․․․․․․․ |
1.0x10−1 |
2.7 |
1.0x10−1 |
2.7 |
7.0x10−4 |
1.9x10−2 |
|
Am-241․․․․․․․․․ |
Americium (95)․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x10−3 |
2.7x10−2 |
1.3x10−1 |
3.4 |
|
Am-242m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x10−3 |
2.7x10−2 |
3.6x10−1 |
1.0x101 |
|
Am-243 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0 |
1.4x102 |
1.0x10−3 |
2.7x10−2 |
7.4x10−3 |
2.0x10−1 |
|
Ar-37․․․․․․․․․․ |
Argon (18)․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
3.7x103 |
9.9x104 |
|
Ar-39․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
2.0x101 |
5.4x102 |
1.3 |
3.4x101 |
|
Ar-41․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
1.5x106 |
4.2x107 |
|
As-72․․․․․․․․․․ |
Arsenic (33)․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
6.2x104 |
1.7x106 |
|
As-73․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
8.2x102 |
2.2x104 |
|
As-74․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
9.0x10−1 |
2.4x101 |
3.7x103 |
9.9x104 |
|
As-76․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
5.8x104 |
1.6x106 |
|
As-77․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
7.0x10−1 |
1.9x101 |
3.9x104 |
1.0x106 |
|
At-211 (a) |
Astatine (85)․․․․․․․․ |
2.0x101 |
5.4x102 |
5.0x10−1 |
1.4x101 |
7.6x104 |
2.1x106 |
|
Au-193․․․․․․․․․ |
Gold (79)․․․․․․․․․․․․ |
7.0 |
1.9x102 |
2.0 |
5.4x101 |
3.4x104 |
9.2x105 |
|
Au-194․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
1.5x104 |
4.1x105 |
|
Au-195․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
6.0 |
1.6x102 |
1.4x102 |
3.7x103 |
|
Au-198․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
6.0x10−1 |
1.6x101 |
9.0x103 |
2.4x105 |
|
Au-199․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
6.0x10−1 |
1.6x101 |
7.7x103 |
2.1x105 |
|
Ba-131 (a) |
Barium (56)․․․․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
3.1x103 |
8.4x104 |
|
Ba-133․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
3.0 |
8.1x101 |
9.4 |
2.6x102 |
|
Ba-133m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
6.0x10−1 |
1.6x101 |
2.2x104 |
6.1x105 |
|
Ba-140 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0x10−1 |
1.4x101 |
3.0x10−1 |
8.1 |
2.7x103 |
7.3x104 |
|
Be-7․․․․․․․․․․․ |
Beryllium (4)․․․․․․․․ |
2.0x101 |
5.4x102 |
2.0x101 |
5.4x102 |
1.3x104 |
3.5x105 |
|
Be-10․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
6.0x10−1 |
1.6x101 |
8.3x10−4 |
2.2x10−2 |
|
Bi-205․․․․․․․․․ |
Bismuth (83)․․․․․․․․․ |
7.0 x 10−1 |
1.9 x 101 |
7.0 x 10−1 |
1.9 x 101 |
1.5 x 103 |
4.2 x 104 |
|
Bi-206․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
3.8x103 |
1.0x105 |
|
Bi-207․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
7.0x10−1 |
1.9x101 |
1.9 |
5.2x101 |
|
Bi-210․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
6.0x10−1 |
1.6x101 |
4.6x103 |
1.2x105 |
|
Bi-210m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
2.0x10−2 |
5.4x10−1 |
2.1x10−5 |
5.7x10−4 |
|
Bi-212 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
6.0x10−1 |
1.6x101 |
5.4x105 |
1.5x107 |
|
Bk-247․․․․․․․․․ |
Berkelium (97)․․․․․․․ |
8.0 |
2.2x102 |
8.0x10−4 |
2.2x10−2 |
3.8x10−2 |
1.0 |
|
Bk-249 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
3.0x10−1 |
8.1 |
6.1x101 |
1.6x103 |
|
Br-76․․․․․․․․․․ |
Bromine (35)․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
9.4x104 |
2.5x106 |
|
Br-77․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
3.0 |
8.1x101 |
2.6x104 |
7.1x105 |
|
Br-82․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
4.0x104 |
1.1x106 |
|
C-11․․․․․․․․․․․ |
Carbon (6)․․․․․․․․․․․ |
1.0 |
2.7x101 |
6.0x10−1 |
1.6x101 |
3.1x107 |
8.4x108 |
|
C-14․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
3.0 |
8.1x101 |
1.6x10−1 |
4.5 |
|
Ca-41․․․․․․․․․․ |
Calcium (20)․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
3.1x10−3 |
8.5x10−2 |
|
Ca-45․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
1.0 |
2.7x101 |
6.6x102 |
1.8x104 |
|
Ca-47 (a)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
3.0x10−1 |
8.1 |
2.3x104 |
6.1x105 |
|
Cd-109․․․․․․․․․ |
Cadmium (48)․․․․․․․․․ |
3.0x101 |
8.1x102 |
2.0 |
5.4x101 |
9.6x101 |
2.6x103 |
|
Cd-113m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
5.0x10−1 |
1.4x101 |
8.3 |
2.2x102 |
|
Cd-115 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
4.0x10−1 |
1.1x101 |
1.9x104 |
5.1x105 |
|
Cd-115m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
9.4x102 |
2.5x104 |
|
Ce-139․․․․․․․․․ |
Cerium (58)․․․․․․․․․․ |
7.0 |
1.9x102 |
2.0 |
5.4x101 |
2.5x102 |
6.8x103 |
|
Ce-141․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
6.0x10−1 |
1.6x101 |
1.1x103 |
2.8x104 |
|
Ce-143․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0x10−1 |
2.4x101 |
6.0x10−1 |
1.6x101 |
2.5x104 |
6.6x105 |
|
Ce-144 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x10−1 |
5.4 |
2.0x10−1 |
5.4 |
1.2x102 |
3.2x103 |
|
Cf-248․․․․․․․․․ |
Californium (98)․․․․․ |
4.0x101 |
1.1x103 |
6.0x10−3 |
1.6x10−1 |
5.8x101 |
1.6x103 |
|
Cf-249․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
8.0x10−4 |
2.2x10−2 |
1.5x10−1 |
4.1 |
|
Cf-250․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
2.0x10−3 |
5.4x10−2 |
4.0 |
1.1x102 |
|
Cf-251․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0 |
1.9x102 |
7.0x10−4 |
1.9x10−2 |
5.9x10−2 |
1.6 |
|
Cf-252․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․ |
1.0 x 10-1 |
2.7 |
3.0 x 10-3 |
8.1 x 10-2 |
2.0 x 101 |
5.4 x 102 |
|
Cf-253 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x10−2 |
1.1 |
1.1x103 |
2.9x104 |
|
Cf-254․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x10−3 |
2.7x10−2 |
1.0x10−3 |
2.7x10−2 |
3.1x102 |
8.5x103 |
|
Cl-36․․․․․․․․․․ |
Chlorine (17)․․․․․․․․ |
1.0x101 |
2.7x102 |
6.0x10−1 |
1.6x101 |
1.2x10−3 |
3.3x10−2 |
|
Cl-38․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x10−1 |
5.4 |
2.0x10−1 |
5.4 |
4.9x106 |
1.3x108 |
|
Cm-240․․․․․․․․․ |
Curium (96)․․․․․․․․․․ |
4.0x101 |
1.1x103 |
2.0x10−2 |
5.4x10−1 |
7.5x102 |
2.0x104 |
|
Cm-241․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
1.0 |
2.7x101 |
6.1x102 |
1.7x104 |
|
Cm-242․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
1.0x10−2 |
2.7x10−1 |
1.2x102 |
3.3x103 |
|
Cm-243․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0 |
2.4x102 |
1.0x10−3 |
2.7x10−2 |
1.9x10−3 |
5.2x101 |
|
Cm-244․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
2.0x10−3 |
5.4x10−2 |
3.0 |
8.1x101 |
|
Cm-245․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0 |
2.4x102 |
9.0x10−4 |
2.4x10−2 |
6.4x10−3 |
1.7x10−1 |
|
Cm-246․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0 |
2.4x102 |
9.0x10−4 |
2.4x10−2 |
1.1x10−2 |
3.1x10−1 |
|
Cm-247 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
1.0x10−3 |
2.7x10−2 |
3.4x10−6 |
9.3x10−5 |
|
Cm-248․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․ |
2.0 x 10−2 |
5.4 x 10−1 |
3.0 x 10−4 |
8.1 x 10−3 |
1.6 x 10−4 |
4.2 x 10−3 |
|
Co-55․․․․․․․․․․ |
Cobalt (27)․․․․․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
1.1x105 |
3.1x106 |
|
Co-56․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
1.1x103 |
3.0x104 |
|
Co-57․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x101 |
2.7x102 |
3.1x102 |
8.4x103 |
|
Co-58․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
1.2x103 |
3.2x104 |
|
Co-58m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
2.2x105 |
5.9x106 |
|
Co-60․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
4.2x101 |
1.1x103 |
|
Cr-51․․․․․․․․․․ |
Chromium (24)․․․․․․․․ |
3.0x101 |
8.1x102 |
3.0x101 |
8.1x102 |
3.4x103 |
9.2x104 |
|
Cs-129․․․․․․․․․ |
Cesium (55)․․․․․․․․․․ |
4.0 |
1.1x102 |
4.0 |
1.1x102 |
2.8x104 |
7.6x105 |
|
Cs-131․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x101 |
8.1x102 |
3.0x101 |
8.1x102 |
3.8x103 |
1.0x105 |
|
Cs-132․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
5.7x103 |
1.5x105 |
|
Cs-134․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
7.0x10−1 |
1.9x101 |
4.8x101 |
1.3x103 |
|
Cs-134m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
6.0x10−1 |
1.6x101 |
3.0x105 |
8.0x106 |
|
Cs-135․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
1.0 |
2.7x101 |
4.3x10−5 |
1.2x10−3 |
|
Cs-136․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
2.7x103 |
7.3x104 |
|
Cs-137 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
6.0x10−1 |
1.6x101 |
3.2 |
8.7x101 |
|
Cu-64․․․․․․․․․․ |
Copper (29)․․․․․․․․․․ |
6.0 |
1.6x102 |
1.0 |
2.7x101 |
1.4x105 |
3.9x106 |
|
Cu-67․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
7.0x10−1 |
1.9x101 |
2.8x104 |
7.6x105 |
|
Dy-159․․․․․․․․․ |
Dysprosium (66)․․․․․․ |
2.0x101 |
5.4x102 |
2.0x101 |
5.4x102 |
2.1x102 |
5.7x103 |
|
Dy-165․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0x10−1 |
2.4x101 |
6.0x10−1 |
1.6x101 |
3.0x105 |
8.2x106 |
|
Dy-166 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0x10−1 |
2.4x101 |
3.0x10−1 |
8.1 |
8.6x103 |
2.3x105 |
|
Er-169․․․․․․․․․ |
Erbium (68)․․․․․․․․․․ |
4.0x101 |
1.1x103 |
1.0 |
2.7x101 |
3.1x103 |
8.3x104 |
|
Er-171․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
8.0x10−1 |
2.2x101 |
5.0x10−1 |
1.4x101 |
9.0x104 |
2.4x106 |
|
Eu-147․․․․․․․․․ |
Europium (63)․․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
1.4x103 |
3.7x104 |
|
Eu-148․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
6.0x102 |
1.6x104 |
|
Eu-149․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
2.0x101 |
5.4x102 |
3.5x102 |
9.4x103 |
|
Eu-150 (short lived) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
7.0x10−1 |
1.9x101 |
6.1x104 |
1.6x106 |
|
Eu-150 (long lived) |
․․․․․․․․․․․․․․․․․․․․․ |
7.0 x 10−1 |
1.9 x 101 |
7.0 x 10−1 |
1.9 x 101 |
6.1 x 104 |
1.6 x 106 |
|
Eu-152․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
6.5 |
1.8x102 |
|
Eu-152m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
8.0x10−1 |
2.2x101 |
8.0x10−1 |
2.2x101 |
8.2x104 |
2.2x106 |
|
Eu-154․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0x10−1 |
2.4x101 |
6.0x10−1 |
1.6x101 |
9.8 |
2.6x102 |
|
Eu-155․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
3.0 |
8.1x101 |
1.8x101 |
4.9x102 |
|
Eu-156․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
7.0x10−1 |
1.9x101 |
2.0x103 |
5.5x104 |
|
F-18․․․․․․․․․․․ |
Fluorine (9)․․․․․․․․․ |
1.0 |
2.7x101 |
6.0x10−1 |
1.6x101 |
3.5x106 |
9.5x107 |
|
Fe-52 (a)․ |
Iron (26)․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
2.7x105 |
7.3x106 |
|
Fe-55․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
8.8x101 |
2.4x103 |
|
Fe-59․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0x10−1 |
2.4x101 |
9.0x10−1 |
2.4x101 |
1.8x103 |
5.0x104 |
|
Fe-60 (a)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
2.0x10−1 |
5.4 |
7.4x10−4 |
2.0x10−2 |
|
Ga-67․․․․․․․․․․ |
Gallium (31)․․․․․․․․․ |
7.0 |
1.9x102 |
3.0 |
8.1x101 |
2.2x104 |
6.0x105 |
|
Ga-68․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
1.5x106 |
4.1x107 |
|
Ga-72․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
1.1x105 |
3.1x106 |
|
Gd-146 (a) |
Gadolinium (64)․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
6.9x102 |
1.9x104 |
|
Gd-148․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
2.0x10−3 |
5.4x10−2 |
1.2 |
3.2x101 |
|
Gd-153․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
9.0 |
2.4x102 |
1.3x102 |
3.5x103 |
|
Gd-159․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
6.0x10−1 |
1.6x101 |
3.9x104 |
1.1x106 |
|
Ge-68 (a)․ |
Germanium (32)․․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
2.6x102 |
7.1x103 |
|
Ge-71․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
5.8x103 |
1.6x105 |
|
Ge-77․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
1.3x105 |
3.6x106 |
|
Hf-172 (a) |
Hafnium (72)․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
6.0x10−1 |
1.6x101 |
4.1x101 |
1.1x103 |
|
Hf-175․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
3.0 |
8.1x101 |
3.9x102 |
1.1x104 |
|
Hf-181․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
5.0x10−1 |
1.4x101 |
6.3x102 |
1.7x104 |
|
Hf-182․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
8.1x10−6 |
2.2x10−4 |
|
Hg-194 (a) |
Mercury (80)․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
1.3x10−1 |
3.5 |
|
Hg-195m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
7.0x10−1 |
1.9x101 |
1.5x104 |
4.0x105 |
|
Hg-197․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
1.0x101 |
2.7x102 |
9.2x103 |
2.5x105 |
|
Hg-197m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
4.0x10−1 |
1.1x101 |
2.5x104 |
6.7x105 |
|
Hg-203․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0 |
1.4x102 |
1.0 |
2.7x101 |
5.1x102 |
1.4x104 |
|
Ho-166․․․․․․․․․ |
Holmium (67)․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
2.6x104 |
7.0x105 |
|
Ho-166m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
5.0x10−1 |
1.4x101 |
6.6x10−2 |
1.8 |
|
I-123․․․․․․․․․․ |
Iodine (53)․․․․․․․․․․ |
6.0 |
1.6x102 |
3.0 |
8.1x101 |
7.1x104 |
1.9x106 |
|
I-124․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
9.3x103 |
2.5x105 |
|
I-125․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
3.0 |
8.1x101 |
6.4x102 |
1.7x104 |
|
I-126․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
1.0 |
2.7x101 |
2.9x103 |
8.0x104 |
|
I-129․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
6.5x10−6 |
1.8x10−4 |
|
I-131․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
7.0x10−1 |
1.9x101 |
4.6x103 |
1.2x105 |
|
I-132․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
3.8x105 |
1.0x107 |
|
I-133․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
6.0x10−1 |
1.6x101 |
4.2x104 |
1.1x106 |
|
I-134․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
9.9x105 |
2.7x107 |
|
I-135 (a)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
6.0x10−1 |
1.6x101 |
1.3x105 |
3.5x106 |
|
In-111․․․․․․․․․ |
Indium (49)․․․․․․․․․․ |
3.0 |
8.1x101 |
3.0 |
8.1x101 |
1.5x104 |
4.2x105 |
|
In-113m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0 |
1.1x102 |
2.0 |
5.4x101 |
6.2x105 |
1.7x107 |
|
In-114m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
5.0x10−1 |
1.4x101 |
8.6x102 |
2.3x104 |
|
In-115m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0 |
1.9x102 |
1.0 |
2.7x101 |
2.2x105 |
6.1x106 |
|
Ir-189 (a) |
Iridium (77)․․․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x101 |
2.7x102 |
1.9x103 |
5.2x104 |
|
Ir-190․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
7.0x10−1 |
1.9x101 |
2.3x103 |
6.2x104 |
|
Ir-192․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․ |
(c)1.0 |
L4c 2.7 x 101 |
6.0 x 10-1 |
1.6 x 101 |
3.4 x 102 |
9.2 x 103 |
|
Ir-194․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
3.1x104 |
8.4x105 |
|
K-40․․․․․․․․․․․ |
Potassium (19)․․․․․․․ |
9.0x10−1 |
2.4x101 |
9.0x10−1 |
2.4x101 |
2.4x10−7 |
6.4x10−6 |
|
K-42․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x10−1 |
5.4 |
2.0x10−1 |
5.4 |
2.2x105 |
6.0x106 |
|
K-43․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
6.0x10−1 |
1.6x101 |
1.2x105 |
3.3x106 |
|
Kr-79․․․․․․․․․․ |
Krypton (36)․․․․․․․․․ |
4.0 |
1.1 x 102 |
2.0 |
5.4 x 101 |
4.2 x 104 |
1.1 x 106 |
|
Kr-81․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․ |
4.0 x 101 |
1.1 x 103 |
4.0 x 101 |
1.1 x 103 |
7.8 x 10-4 |
2.1 x 10-2 |
|
Kr-85․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x101 |
2.7x102 |
1.5x101 |
3.9x102 |
|
Kr-85m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
8.0 |
2.2x102 |
3.0 |
8.1x101 |
3.0x105 |
8.2x106 |
|
Kr-87․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x10−1 |
5.4 |
2.0x10−1 |
5.4 |
1.0x106 |
2.8x107 |
|
La-137․․․․․․․․․ |
Lanthanum (57)․․․․․․․ |
3.0x101 |
8.1x102 |
6.0 |
1.6x102 |
1.6x10−3 |
4.4x10−2 |
|
La-140․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
2.1x104 |
5.6x105 |
|
Lu-172․․․․․․․․․ |
Lutetium (71)․․․․․․․․ |
6.0x10−1 |
1.6x101 |
6.0x10−1 |
1.6x101 |
4.2x103 |
1.1x105 |
|
Lu-173․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
8.0 |
2.2x102 |
8.0 |
2.2x102 |
5.6x101 |
1.5x103 |
|
Lu-174․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0 |
2.4x102 |
9.0 |
2.4x102 |
2.3x101 |
6.2x102 |
|
Lu-174m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
1.0x101 |
2.7x102 |
2.0x102 |
5.3x103 |
|
Lu-177․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x101 |
8.1x102 |
7.0x10−1 |
1.9x101 |
4.1x103 |
1.1x105 |
|
Mg-28 (a)․ |
Magnesium (12)․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
2.0x105 |
5.4x106 |
|
Mn-52․․․․․․․․․․ |
Manganese (25)․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
1.6x104 |
4.4x105 |
|
Mn-53․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
6.8x10−5 |
1.8x10−3 |
|
Mn-54․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
2.9x102 |
7.7x103 |
|
Mn-56․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
8.0x105 |
2.2x107 |
|
Mo-93․․․․․․․․․․ |
Molybdenum (42)․․․․․․ |
4.0x101 |
1.1x103 |
2.0x101 |
5.4x102 |
4.1x10−2 |
1.1 |
|
․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7 x 101 |
6.0 x 10-1 |
1.6 x 101 |
1.8 x 104 |
4.8 x 105 |
|
|
N-13․․․․․․․․․․․ |
Nitrogen (7)․․․․․․․․․ |
9.0x10−1 |
2.4x101 |
6.0x10−1 |
1.6x101 |
5.4x107 |
1.5x109 |
|
Na-22․․․․․․․․․․ |
Sodium (11)․․․․․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
2.3x102 |
6.3x103 |
|
Na-24․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x10−1 |
5.4 |
2.0x10−1 |
5.4 |
3.2x105 |
8.7x106 |
|
Nb-93m․․․․․․․․․ |
Niobium (41)․․․․․․․․․ |
4.0x101 |
1.1x103 |
3.0x101 |
8.1x102 |
8.8 |
2.4x102 |
|
Nb-94․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
7.0x10−1 |
1.9x101 |
6.9x10−3 |
1.9x10−1 |
|
Nb-95․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
1.5x103 |
3.9x104 |
|
Nb-97․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0x10−1 |
2.4x101 |
6.0x10−1 |
1.6x101 |
9.9x105 |
2.7x107 |
|
Nd-147․․․․․․․․․ |
Neodymium (60)․․․․․․․ |
6.0 |
1.6x102 |
6.0x10−1 |
1.6x101 |
3.0x103 |
8.1x104 |
|
Nd-149․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
5.0x10−1 |
1.4x101 |
4.5x105 |
1.2x107 |
|
Ni-59․․․․․․․․․․ |
Nickel (28)․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
3.0x10−3 |
8.0x10−2 |
|
Ni-63․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
3.0x101 |
8.1x102 |
2.1 |
5.7x101 |
|
Ni-65․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
7.1x105 |
1.9x107 |
|
Np-235․․․․․․․․․ |
Neptunium (93)․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
5.2x101 |
1.4x103 |
|
Np-236 (short-lived) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
2.0 |
5.4x101 |
4.7x10−4 |
1.3x10−2 |
|
Np-236 (long-lived) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0x100 |
2.4x102 |
2.0x10−2 |
5.4x10−1 |
4.7x10−4 |
1.3x10−2 |
|
Np-237․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
2.0x10−3 |
5.4x10−2 |
2.6x10−5 |
7.1x10−4 |
|
Np-239․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0 |
1.9x102 |
4.0x10−1 |
1.1x101 |
8.6x103 |
2.3x105 |
|
Os-185․․․․․․․․․ |
Osmium (76)․․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
2.8x102 |
7.5x103 |
|
Os-191․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
2.0 |
5.4x101 |
1.6x103 |
4.4x104 |
|
Os-191m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
3.0x101 |
8.1x102 |
4.6x104 |
1.3x106 |
|
Os-193․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
6.0x10−1 |
1.6x101 |
2.0x104 |
5.3x105 |
|
Os-194 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
1.1x101 |
3.1x102 |
|
P-32․․․․․․․․․․․ |
Phosphorus (15)․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
1.1x104 |
2.9x105 |
|
P-33․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
1.0 |
2.7x101 |
5.8x103 |
1.6x105 |
|
Pa-230 (a) |
Protactinium (91)․․․․ |
2.0 |
5.4x101 |
7.0x10−2 |
1.9 |
1.2x103 |
3.3x104 |
|
Pa-231․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0 |
1.1x102 |
4.0x10−4 |
1.1x10−2 |
1.7x10−3 |
4.7x10−2 |
|
Pa-233․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0 |
1.4x102 |
7.0x10−1 |
1.9x101 |
7.7x102 |
2.1x104 |
|
Pb-201․․․․․․․․․ |
Lead (82)․․․․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
6.2x104 |
1.7x106 |
|
Pb-202․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
2.0x101 |
5.4x102 |
1.2x10−4 |
3.4x10−3 |
|
Pb-203․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0 |
1.1x102 |
3.0 |
8.1x101 |
1.1x104 |
3.0x105 |
|
Pb-205․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
4.5x10−6 |
1.2x10−4 |
|
Pb-210 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
5.0x10−2 |
1.4 |
2.8 |
7.6x101 |
|
Pb-212 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
2.0x10−1 |
5.4 |
5.1x104 |
1.4x106 |
|
Pd-103 (a) |
Palladium (46)․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
2.8x103 |
7.5x104 |
|
Pd-107․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
1.9x10−5 |
5.1x10−4 |
|
Pd-109․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
5.0x10−1 |
1.4x101 |
7.9x104 |
2.1x106 |
|
Pm-143․․․․․․․․․ |
Promethium (61)․․․․․․ |
3.0 |
8.1x101 |
3.0 |
8.1x101 |
1.3x102 |
3.4x103 |
|
Pm-144․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
7.0x10−1 |
1.9x101 |
9.2x101 |
2.5x103 |
|
Pm-145․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x101 |
8.1x102 |
1.0x101 |
2.7x102 |
5.2 |
1.4x102 |
|
Pm-147․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
2.0 |
5.4x101 |
3.4x101 |
9.3x102 |
|
Pm-148m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
8.0x10−1 |
2.2x101 |
7.0x10−1 |
1.9x101 |
7.9x102 |
2.1x104 |
|
Pm-149․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
6.0x10−1 |
1.6x101 |
1.5x104 |
4.0x105 |
|
Pm-151․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
6.0x10−1 |
1.6x101 |
2.7x104 |
7.3x105 |
|
Po-210․․․․․․․․․ |
Polonium (84)․․․․․․․․ |
4.0x101 |
1.1x103 |
2.0x10−2 |
5.4x10−1 |
1.7x102 |
4.5x103 |
|
Pr-142․․․․․․․․․ |
Praseodymium (59)․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
4.3x104 |
1.2x106 |
|
Pr-143․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
6.0x10−1 |
1.6x101 |
2.5x103 |
6.7x104 |
|
Pt-188 (a) |
Platinum (78)․․․․․․․․ |
1.0 |
2.7x101 |
8.0x10−1 |
2.2x101 |
2.5x103 |
6.8x104 |
|
Pt-191․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0 |
1.1x102 |
3.0 |
8.1x101 |
8.7x103 |
2.4x105 |
|
Pt-193․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
1.4 |
3.7x101 |
|
Pt-193m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
5.0x10−1 |
1.4x101 |
5.8x103 |
1.6x105 |
|
Pt-195m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
5.0x10−1 |
1.4x101 |
6.2x103 |
1.7x105 |
|
Pt-197․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
6.0x10−1 |
1.6x101 |
3.2x104 |
8.7x105 |
|
Pt-197m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
6.0x10−1 |
1.6x101 |
3.7x105 |
1.0x107 |
|
Pu-236․․․․․․․․․ |
Plutonium (94)․․․․․․․ |
3.0x101 |
8.1x102 |
3.0x10−3 |
8.1x10−2 |
2.0x101 |
5.3x102 |
|
Pu-237․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
2.0x101 |
5.4x102 |
4.5x102 |
1.2x104 |
|
Pu-238․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x10−3 |
2.7x10−2 |
6.3x10−1 |
1.7x101 |
|
Pu-239․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x10−3 |
2.7x10−2 |
2.3x10−3 |
6.2x10−2 |
|
Pu-240․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x10−3 |
2.7x10−2 |
8.4x10−3 |
2.3x10−1 |
|
Pu-241 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
6.0x10−2 |
1.6 |
3.8 |
1.0x102 |
|
Pu-242․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x10−3 |
2.7x10−2 |
1.5x10−4 |
3.9x10−3 |
|
Pu-244 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
1.0x10−3 |
2.7x10−2 |
6.7x10−7 |
1.8x10−5 |
|
Ra-223 (a) |
Radium (88)․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
7.0x10−3 |
1.9x10−1 |
1.9x103 |
5.1x104 |
|
Ra-224 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
2.0x10−2 |
5.4x10−1 |
5.9x103 |
1.6x105 |
|
Ra-225 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x10−1 |
5.4 |
4.0x10−3 |
1.1x10−1 |
1.5x103 |
3.9x104 |
|
Ra-226 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x10−1 |
5.4 |
3.0x10−3 |
8.1x10−2 |
3.7x10−2 |
1.0 |
|
Ra-228 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
2.0x10−2 |
5.4x10−1 |
1.0x101 |
2.7x102 |
|
Rb-81․․․․․․․․․․ |
Rubidium (37)․․․․․․․․ |
2.0 |
5.4x101 |
8.0x10−1 |
2.2x101 |
3.1x105 |
8.4x106 |
|
Rb-83 (a)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
6.8x102 |
1.8x104 |
|
Rb-84․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
1.8x103 |
4.7x104 |
|
Rb-86․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
3.0x103 |
8.1x104 |
|
Rb-87․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
3.2x10−9 |
8.6x10−8 |
|
Rb(nat)․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
6.7x106 |
1.8x108 |
|
Re-184․․․․․․․․․ |
Rhenium (75)․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
6.9x102 |
1.9x104 |
|
Re-184m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
1.0 |
2.7x101 |
1.6x102 |
4.3x103 |
|
Re-186․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
6.0x10−1 |
1.6x101 |
6.9x103 |
1.9x105 |
|
Re-187․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
1.4x10−9 |
3.8x10−8 |
|
Re-188․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
3.6x104 |
9.8x105 |
|
Re-189 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
6.0x10−1 |
1.6x101 |
2.5x104 |
6.8x105 |
|
Re(nat)․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
0.0 |
2.4x10−8 |
|
Rh-99․․․․․․․․․․ |
Rhodium (45)․․․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
3.0x103 |
8.2x104 |
|
Rh-101․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0 |
1.1x102 |
3.0 |
8.1x101 |
4.1x101 |
1.1x103 |
|
Rh-102․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
4.5x101 |
1.2x103 |
|
Rh-102m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
2.3x102 |
6.2x103 |
|
Rh-103m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
1.2x106 |
3.3x107 |
|
Rh-105․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
8.0x10−1 |
2.2x101 |
3.1x104 |
8.4x105 |
|
Rn-222 (a) |
Radon (86)․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
4.0x10−3 |
1.1x10−1 |
5.7x103 |
1.5x105 |
|
Ru-97․․․․․․․․․․ |
Ruthenium (44)․․․․․․․ |
5.0 |
1.4x102 |
5.0 |
1.4x102 |
1.7x104 |
4.6x105 |
|
Ru-103 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
1.2x103 |
3.2x104 |
|
Ru-105․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
6.0x10−1 |
1.6x101 |
2.5x105 |
6.7x106 |
|
Ru-106 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x10−1 |
5.4 |
2.0x10−1 |
5.4 |
1.2x102 |
3.3x103 |
|
S-35․․․․․․․․․․․ |
Sulphur (16)․․․․․․․․․ |
4.0x101 |
1.1x103 |
3.0 |
8.1x101 |
1.6x103 |
4.3x104 |
|
Sb-122․․․․․․․․․ |
Antimony (51)․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
1.5x104 |
4.0x105 |
|
Sb-124․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
6.0x10−1 |
1.6x101 |
6.5x102 |
1.7x104 |
|
Sb-125․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
1.0 |
2.7x101 |
3.9x101 |
1.0x103 |
|
Sb-126․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
3.1x103 |
8.4x104 |
|
Sc-44․․․․․․․․․․ |
Scandium (21)․․․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
6.7x105 |
1.8x107 |
|
Sc-46․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0x10−1 |
1.4x101 |
5.0x10−1 |
1.4x101 |
1.3x103 |
3.4x104 |
|
Sc-47․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
7.0x10−1 |
1.9x101 |
3.1x104 |
8.3x105 |
|
Sc-48․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
5.5x104 |
1.5x106 |
|
Se-75․․․․․․․․․․ |
Selenium (34)․․․․․․․․ |
3.0 |
8.1x101 |
3.0 |
8.1x101 |
5.4x102 |
1.5x104 |
|
Se-79․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
2.0 |
5.4x101 |
2.6x10−3 |
7.0x10−2 |
|
Si-31․․․․․․․․․․ |
Silicon (14)․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
6.0x10−1 |
1.6x101 |
1.4x106 |
3.9x107 |
|
Si-32․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
5.0x10−1 |
1.4x101 |
3.9 |
1.1x102 |
|
Sm-145․․․․․․․․․ |
Samarium (62)․․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x101 |
2.7x102 |
9.8x101 |
2.6x103 |
|
Sm-147․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
8.5x10-10 |
2.3x10-8 |
|
Sm-151․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
1.0x101 |
2.7x102 |
9.7x10−1 |
2.6x101 |
|
Sm-153․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0 |
2.4x102 |
6.0x10−1 |
1.6x101 |
1.6x104 |
4.4x105 |
|
Sn-113 (a) |
Tin (50)․․․․․․․․․․․․․ |
4.0 |
1.1x102 |
2.0 |
5.4x101 |
3.7x102 |
1.0x104 |
|
Sn-117m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0 |
1.9x102 |
4.0x10−1 |
1.1x101 |
3.0x103 |
8.2x104 |
|
Sn-119m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
3.0x101 |
8.1x102 |
1.4x102 |
3.7x103 |
|
Sn-121m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
9.0x10−1 |
2.4x101 |
2.0 |
5.4x101 |
|
Sn-123․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
8.0x10−1 |
2.2x101 |
6.0x10−1 |
1.6x101 |
3.0x102 |
8.2x103 |
|
Sn-125․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
4.0x103 |
1.1x105 |
|
Sn-126 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
4.0x10−1 |
1.1x101 |
1.0x10−3 |
2.8x10−2 |
|
Sr-82 (a)․ |
Strontium (38)․․․․․․․ |
2.0x10−1 |
5.4 |
2.0x10−1 |
5.4 |
2.3x103 |
6.2x104 |
|
Sr-85․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
8.8x102 |
2.4x104 |
|
Sr-85m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0 |
1.4x102 |
5.0 |
1.4x102 |
1.2x106 |
3.3x107 |
|
Sr-87m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
3.0 |
8.1x101 |
4.8x105 |
1.3x107 |
|
Sr-89․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
6.0x10−1 |
1.6x101 |
1.1x103 |
2.9x104 |
|
Sr-90 (a)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
5.1 |
1.4x102 |
|
Sr-91 (a)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
1.3x105 |
3.6x106 |
|
Sr-92 (a)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
3.0x10−1 |
8.1 |
4.7x105 |
1.3x107 |
|
T(H-3)․․․․․․․․․ |
Tritium (1)․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
3.6x102 |
9.7x103 |
|
Ta-178 (long-lived) |
Tantalum (73)․․․․․․․․ |
1.0 |
2.7x101 |
8.0x10−1 |
2.2x101 |
4.2x106 |
1.1x108 |
|
Ta-179․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x101 |
8.1x102 |
3.0x101 |
8.1x102 |
4.1x101 |
1.1x103 |
|
Ta-182․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
9.0x10−1 |
2.4x101 |
5.0x10−1 |
1.4x101 |
2.3x102 |
6.2x103 |
|
Tb-157․․․․․․․․․ |
Terbium (65)․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
5.6x10−1 |
1.5x101 |
|
Tb-158․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
5.6x10−1 |
1.5x101 |
|
Tb-160․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x101 |
6.0x10−1 |
1.6x101 |
4.2x102 |
1.1x104 |
|
Tc-95m (a) |
Technetium (43)․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
8.3x102 |
2.2x104 |
|
Tc-96․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
1.2x104 |
3.2x105 |
|
Tc-96m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
1.4x106 |
3.8x107 |
|
Tc-97․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
5.2x10−5 |
1.4x10−3 |
|
Tc-97m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
1.0 |
2.7x101 |
5.6x102 |
1.5x104 |
|
Tc-98․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
8.0x10−1 |
2.2x101 |
7.0x10−1 |
1.9x101 |
3.2x10−5 |
8.7x10−4 |
|
Tc-99․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
9.0x10−1 |
2.4x101 |
6.3x10−4 |
1.7x10−2 |
|
Tc-99m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
4.0 |
1.1x102 |
1.9x105 |
5.3x106 |
|
Te-121․․․․․․․․․ |
Tellurium (52)․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
2.4x103 |
6.4x104 |
|
Te-121m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0 |
1.4x102 |
3.0 |
8.1x101 |
2.6x102 |
7.0x103 |
|
Te-123m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
8.0 |
2.2x102 |
1.0 |
2.7x101 |
3.3x102 |
8.9x103 |
|
Te-125m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
9.0x10−1 |
2.4x101 |
6.7x102 |
1.8x104 |
|
Te-127․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
7.0x10−1 |
1.9x101 |
9.8x104 |
2.6x106 |
|
Te-127m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
5.0x10−1 |
1.4x101 |
3.5x102 |
9.4x103 |
|
Te-129․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
6.0x10−1 |
1.6x101 |
7.7x105 |
2.1x107 |
|
Te-129m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
8.0x10−1 |
2.2x101 |
4.0x10−1 |
1.1x101 |
1.1x103 |
3.0x104 |
|
Te-131m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
7.0x10−1 |
1.9x101 |
5.0x10−1 |
1.4x101 |
3.0x104 |
8.0x105 |
|
Te-132 (a) |
․․․․․․․․․․․․․․․․․․․․․ |
5.0 x 10−1 |
1.4 x 101 |
4.0 x 10−1 |
1.1 x 101 |
1.1 x 104 |
3.0 x 105 |
|
Th-227․․․․․․․․․ |
Thorium (90)․․․․․․․․․ |
1.0x101 |
2.7x102 |
5.0x10−3 |
1.4x10−1 |
1.1x103 |
3.1x104 |
|
Th-228 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0x10−1 |
1.4x101 |
1.0x10−3 |
2.7x10−2 |
3.0x101 |
8.2x102 |
|
Th-229․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
5.0 |
1.4x102 |
5.0x10−4 |
1.4x10−2 |
7.9x10−3 |
2.1x10−1 |
|
Th-230․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x10−3 |
2.7x10−2 |
7.6x10−4 |
2.1x10−2 |
|
Th-231․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
2.0x10−2 |
5.4x10−1 |
2.0x104 |
5.3x105 |
|
Th-232․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
4.0x10−9 |
1.1x10−7 |
|
Th-234 (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
8.6x102 |
2.3x104 |
|
Th(nat)․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
8.1x10−9 |
2.2x10−7 |
|
Ti-44 (a)․ |
Titanium (22)․․․․․․․․ |
5.0x10−1 |
1.4x101 |
4.0x10−1 |
1.1x101 |
6.4 |
1.7x102 |
|
Tl-200․․․․․․․․․ |
Thallium (81)․․․․․․․․ |
9.0x10−1 |
2.4x101 |
9.0x10−1 |
2.4x101 |
2.2x104 |
6.0x105 |
|
Tl-201․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
4.0 |
1.1x102 |
7.9x103 |
2.1x105 |
|
Tl-202․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
2.0x103 |
5.3x104 |
|
Tl-204․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
7.0x10−1 |
1.9x101 |
1.7x101 |
4.6x102 |
|
Tm-167․․․․․․․․․ |
Thulium (69)․․․․․․․․․ |
7.0 |
1.9x102 |
8.0x10−1 |
2.2x101 |
3.1x103 |
8.5x104 |
|
Tm-170․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
6.0x10−1 |
1.6x101 |
2.2x102 |
6.0x103 |
|
Tm-171․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
|
Uranium (92)․․․․․․․․․ |
4.0x101 |
1.1x103 |
1.0x10−1 |
2.7 |
1.0x103 |
2.7x104 |
|
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x10−3 |
1.1x10−1 |
1.0x103 |
2.7x104 |
|
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x101 |
8.1x102 |
3.0x10−3 |
8.1x10−2 |
1.0x103 |
2.7x104 |
|
|
U-232 (fast lung absorption) (d) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
1.0x10−2 |
2.7x10−1 |
8.3x10−1 |
2.2x101 |
|
U-232 (medium lung absorption) (e) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
7.0x10−3 |
1.9x10−1 |
8.3x10−1 |
2.2x101 |
|
U-232 (slow lung absorption) (f) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x102 |
1.0x10−3 |
2.7x10−2 |
8.3x10−1 |
2.2x101 |
|
U-233 (fast lung absorption) (d) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
9.0x10−2 |
2.4 |
3.6x10−4 |
9.7x10−3 |
|
U-233 (medium lung absorption) (e) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
2.0x10−2 |
5.4x10−1 |
3.6x10−4 |
9.7x10−3 |
|
U-233 (slow lung absorption) (f) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
6.0x10−3 |
1.6x10−1 |
3.6x10−4 |
9.7x10−3 |
|
U-234 (fast lung absorption) (d) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
9.0x10−2 |
2.4 |
2.3x10−4 |
6.2x10−3 |
|
U-234 (medium lung absorption) (e) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
2.0x10−2 |
5.4x10−1 |
2.3x10−4 |
6.2x10−3 |
|
U-234 (slow lung absorption) (f) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
6.0x10−3 |
1.6x10−1 |
2.3x10−4 |
6.2x10−3 |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
8.0x10−8 |
2.2x10−6 |
|
|
U-236 (fast lung absorption) (d) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
2.4x10−6 |
6.5x10−5 |
|
U-236 (medium lung absorption) (e) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
2.0x10−2 |
5.4x10−1 |
2.4x10−6 |
6.5x10−5 |
|
U-236 (slow lung absorption) (f) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
6.0x10−3 |
1.6x10−1 |
2.4x10−6 |
6.5x10−5 |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
1.2x10−8 |
3.4x10−7 |
|
|
U (nat)․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
2.6x10−8 |
7.1x10−7 |
|
U (enriched to 20% or less) (g) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
See Table A-4 |
See Table A-4 |
|
U (dep)․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
See Table A-4 |
See Table A-4 |
|
V-48․․․․․․․․․․․ |
Vanadium (23)․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
6.3x103 |
1.7x105 |
|
V-49․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
3.0x102 |
8.1x103 |
|
W-178 (a)․ |
Tungsten (74)․․․․․․․․ |
9.0 |
2.4x102 |
5.0 |
1.4x102 |
1.3x103 |
3.4x104 |
|
W-181․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x101 |
8.1x102 |
3.0x101 |
8.1x102 |
2.2x102 |
6.0x103 |
|
W-185․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
8.0x10−1 |
2.2x101 |
3.5x102 |
9.4x103 |
|
W-187․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
6.0x10−1 |
1.6x101 |
2.6x104 |
7.0x105 |
|
W-188 (a)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
3.0x10−1 |
8.1 |
3.7x102 |
1.0x104 |
|
Xe-122 (a) |
Xenon (54)․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
4.8x104 |
1.3x106 |
|
Xe-123․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
7.0x10−1 |
1.9x101 |
4.4x105 |
1.2x107 |
|
Xe-127․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0 |
1.1x102 |
2.0 |
5.4x101 |
1.0x103 |
2.8x104 |
|
Xe-131m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x101 |
1.1x103 |
4.0x101 |
1.1x103 |
3.1x103 |
8.4x104 |
|
Xe-133․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x101 |
5.4x102 |
1.0x101 |
2.7x102 |
6.9x103 |
1.9x105 |
|
Xe-135․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
2.0 |
5.4x101 |
9.5x104 |
2.6x106 |
|
Y-87 (a)․․ |
Yttrium (39)․․․․․․․․․ |
1.0 |
2.7x101 |
1.0 |
2.7x101 |
1.7x104 |
4.5x105 |
|
Y-88․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
5.2x102 |
1.4x104 |
|
Y-90․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
2.0x104 |
5.4x105 |
|
Y-91․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
6.0x10−1 |
1.6x101 |
6.0x10−1 |
1.6x101 |
9.1x102 |
2.5x104 |
|
Y-91m․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
1.5x106 |
4.2x107 |
|
Y-92․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0x10−1 |
5.4 |
2.0x10−1 |
5.4 |
3.6x105 |
9.6x106 |
|
Y-93․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x10−1 |
8.1 |
3.0x10−1 |
8.1 |
1.2x105 |
3.3x106 |
|
Yb-169․․․․․․․․․ |
Ytterbium (70)․․․․․․․ |
4.0 |
1.1x102 |
1.0 |
2.7x101 |
8.9x102 |
2.4x104 |
|
Yb-175․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0x101 |
8.1x102 |
9.0x10−1 |
2.4x101 |
6.6x103 |
1.8x105 |
|
Zn-65․․․․․․․․․․ |
Zinc (30)․․․․․․․․․․․․ |
2.0 |
5.4x101 |
2.0 |
5.4x101 |
3.0x102 |
8.2x103 |
|
Zn-69․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
6.0x10−1 |
1.6x101 |
1.8x106 |
4.9x107 |
|
Zn-69m (a) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
3.0 |
8.1x101 |
6.0x10−1 |
1.6x101 |
1.2x105 |
3.3x106 |
|
Zr-88․․․․․․․․․․ |
Zirconium (40)․․․․․․․ |
3.0 |
8.1x101 |
3.0 |
8.1x101 |
6.6x102 |
1.8x104 |
|
Zr-93․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
9.3x10−5 |
2.5x10−3 |
|
Zr-95 (a)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
2.0 |
5.4x101 |
8.0x10−1 |
2.2x101 |
7.9x102 |
2.1x104 |
|
Zr-97 (a)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
4.0x10−1 |
1.1x101 |
4.0x10−1 |
1.1x101 |
7.1x104 |
1.9x106 |
a A1 and/or A2 values include contributions from daughter nuclides with half-lives less than 10 days, as listed in the following:
|
Mg-28 |
Al-28 |
|
Ca-47 |
Sc-47 |
|
Ti-44 |
Sc-44 |
|
Fe-52 |
Mn-52m |
|
Fe-60 |
Co-60m |
|
Zn-69m |
Zn-69 |
|
Ge-68 |
Ga-68 |
|
Rb-83 |
Kr-83m |
|
Sr-82 |
Rb-82 |
|
Sr-90 |
Y-90 |
|
Sr-91 |
Y-91m |
|
Sr-92 |
Y-92 |
|
Y-87 |
Sr-87m |
|
Zr-95 |
Nb-95m |
|
Zr-97 |
Nb-97m, Nb-97 |
|
Mo-99 |
Tc-99m |
|
Tc-95m |
Tc-95 |
|
Tc-96m |
Tc-96 |
|
Ru-103 |
Rh-103m |
|
Ru-106 |
Rh-106 |
|
Pd-103 |
Rh-103m |
|
Ag-108m |
Ag-108 |
|
Ag-110m |
Ag-110 |
|
Cd-115 |
In-115m |
|
In-114m |
In-114 |
|
Sn-113 |
In-113m |
|
Sn-121m |
Sn-121 |
|
Sn-126 |
Sb-126m |
|
Te-127m |
Te-127 |
|
Te-129m |
Te-129 |
|
Te-131m |
Te-131 |
|
Te-132 |
I-132 |
|
I-135 |
Xe-135m |
|
Xe-122 |
I-122 |
|
Cs-137 |
Ba-137m |
|
Ba-131 |
Cs-131 |
|
Ba-140 |
La-140 |
|
Ce-144 |
Pr-144m, Pr-144 |
|
Pm-148m |
Pm-148 |
|
Gd-146 |
Eu-146 |
|
Dy-166 |
Ho-166 |
|
Hf-172 |
Lu-172 |
|
W-178 |
Ta-178 |
|
W-188 |
Re-188 |
|
Re-189 |
Os-189m |
|
Os-194 |
Ir-194 |
|
Ir-189 |
Os-189m |
|
Pt-188 |
Ir-188 |
|
Hg-194 |
Au-194 |
|
Hg-195m |
Hg-195 |
|
Pb-210 |
Bi-210 |
|
Pb-212 |
Bi-212, Tl-208, Po-212 |
|
Bi-210m |
Tl-206 |
|
Bi-212 |
Tl-208, Po-212 |
|
At-211 |
Po-211 |
|
Rn-222 |
Po-218, Pb-214, At-218, Bi-214, Po-214 |
|
Ra-223 |
Rn-219, Po-215, Pb-211, Bi-211, Po-211, Tl-207 |
|
Ra-224 |
Rn-220, Po-216, Pb-212, Bi-212, Tl-208, Po-212 |
|
Ra-225 |
Ac-225, Fr-221, At-217, Bi-213, Tl-209, Po-213, Pb-209 |
|
Ra-226 |
Rn-222, Po-218, Pb-214, At-218, Bi-214, Po-214 |
|
Ra-228 |
Ac-228 |
|
Ac-225 |
Fr-221, At-217, Bi-213, Tl-209, Po-213, Pb-209 |
|
Ac-227 |
Fr-223 |
|
Th-228 |
Ra-224, Rn-220, Po-216, Pb-212, Bi-212, Tl-208, Po-212 |
|
Th-234 |
Pa-234m, Pa-234 |
|
Pa-230 |
Ac-226, Th-226, Fr-222, Ra-222, Rn-218, Po-214 |
|
U-230 |
Th-226, Ra-222, Rn-218, Po-214 |
|
U-235 |
Th-231 |
|
Pu-241 |
U-237 |
|
Pu-244 |
U-240, Np-240m |
|
Am-242m |
Am-242, Np-238 |
|
Am-243 |
Np-239 |
|
Cm-247 |
Pu-243 |
|
Bk-249 |
Am-245 |
|
Cf-253 |
Cm-249 |
b The values of A1 and A2 in Curies (Ci) are approximate and for information only; the regulatory standard units are Terabecquerels (TBq) (see Appendix A to Part 71—Determination of A1 and A2, Section I).
For radionuclide Bi–205, the specific activity is corrected to 1.5 x 103 TBq/g.
For radionuclide Cm–248, the specific activity is corrected to 1.6 x 10-4 TBq/g.
For radionuclide Eu–150 (long lived), the A1 value is corrected to 7.0 x 10-1 TBq.
For radionuclide Te–132(a), the specific activity is corrected to 3.0 x 105 Ci/g.
c The activity of Ir-192 in special form may be determined from a measurement of the rate of decay or a measurement of the radiation level at a prescribed distance from the source.
d These values apply only to compounds of uranium that take the chemical form of UF6, UO2F2 and UO2(NO3)2 in both normal and accident conditions of transport.
e These values apply only to compounds of uranium that take the chemical form of UO3, UF4, UCl4 and hexavalent compounds in both normal and accident conditions of transport.
f These values apply to all compounds of uranium other than those specified in notes (d) and (e) of this table.
g These values apply to unirradiated uranium only.
h A2 = 0.74 TBq (20 Ci) for Mo-99 for domestic use.
|
Table A–2—Exempt Material Activity Concentrations and Exempt Consignment Activity Limits for Radionuclides |
|||||
|---|---|---|---|---|---|
|
Symbol of radionuclide |
Element and atomic number |
Activity concentration for exempt material (Bq/g) |
Activity concentration for exempt material (Ci/g) |
Activity limit for exempt consignment (Bq) |
Activity limit for exempt consignment (Ci) |
|
Ac-225․․․․․․․․․ |
Actinium (89)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Ac-227․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x10−1 |
2.7x10−12 |
1.0x103 |
2.7x10−8 |
|
Ac-228․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Ag-105․․․․․․․․․ |
Silver (47)․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Ag-108m (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Ag-110m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Ag-111․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Al-26․․․․․․․․․․ |
Aluminum (13)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Am-241․․․․․․․․․ |
Americium (95)․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x104 |
2.7x10−7 |
|
Am-242m (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x104 |
2.7x10−7 |
|
Am-243 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Ar-37․․․․․․․․․․ |
Argon (18)․․․․․․․․․․․․․ |
1.0x106 |
2.7x10−5 |
1.0x108 |
2.7x10−3 |
|
Ar-39․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x107 |
2.7x10−4 |
1.0x104 |
2.7x10−7 |
|
Ar-41․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x109 |
2.7x10−2 |
|
As-72․․․․․․․․․․ |
Arsenic (33)․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
As-73․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
As-74․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
As-76․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
As-77․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
At-211․․․․․․․․․ |
Astatine (85)․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Au-193․․․․․․․․․ |
Gold (79)․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Au-194․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Au-195․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Au-198․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Au-199․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Ba-131․․․․․․․․․ |
Barium (56)․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Ba-133․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Ba-133m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Ba-140 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Be-7․․․․․․․․․․․ |
Beryllium (4)․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Be-10․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x106 |
2.7x10−5 |
|
Bi-205․․․․․․․․․ |
Bismuth (83)․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Bi-206․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Bi-207․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Bi-210․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Bi-210m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Bi-212 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Bk-247․․․․․․․․․ |
Berkelium (97)․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x104 |
2.7x10−7 |
|
Bk-249․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Br-76․․․․․․․․․․ |
Bromine (35)․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Br-77․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Br-82․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
C-11․․․․․․․․․․․ |
Carbon (6)․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
C-14․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Ca-41․․․․․․․․․․ |
Calcium (20)․․․․․․․․․․․ |
1.0x105 |
2.7x10−6 |
1.0x107 |
2.7x10−4 |
|
Ca-45․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Ca-47․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Cd-109․․․․․․․․․ |
Cadmium (48)․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x106 |
2.7x10−5 |
|
Cd-113m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Cd-115․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Cd-115m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Ce-139․․․․․․․․․ |
Cerium (58)․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Ce-141․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Ce-143․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Ce-144 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Cf-248․․․․․․․․․ |
Californium (98)․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Cf-249․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Cf-250․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Cf-251․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Cf-252․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Cf-253․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Cf-254․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Cl-36․․․․․․․․․․ |
Chlorine (17)․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x106 |
2.7x10−5 |
|
Cl-38․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Cm-240․․․․․․․․․ |
Curium (96)․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Cm-241․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Cm-242․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Cm-243․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x104 |
2.7x10−7 |
|
Cm-244․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Cm-245․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Cm-246․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Cm-247․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x104 |
2.7x10−7 |
|
Cm-248․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Co-55․․․․․․․․․․ |
Cobalt (27)․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Co-56․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Co-57․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Co-58․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Co-58m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Co-60․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Cr-51․․․․․․․․․․ |
Chromium (24)․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Cs-129․․․․․․․․․ |
Cesium (55)․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Cs-131․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Cs-132․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Cs-134․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Cs-134m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x105 |
2.7x10−6 |
|
Cs-135․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Cs-136․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Cs-137 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Cu-64․․․․․․․․․․ |
Copper (29)․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Cu-67․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Dy-159․․․․․․․․․ |
Dysprosium (66)․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Dy-165․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Dy-166․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Er-169․․․․․․․․․ |
Erbium (68)․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Er-171․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Eu-147․․․․․․․․․ |
Europium (63)․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Eu-148․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Eu-149․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Eu-150 (short lived) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Eu-150 (long lived) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Eu-152․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Eu-152m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Eu-154․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Eu-155․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Eu-156․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
F-18․․․․․․․․․․․ |
Fluorine (9)․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Fe-52․․․․․․․․․․ |
Iron (26)․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Fe-55․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x106 |
2.7x10−5 |
|
Fe-59․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Fe-60․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Ga-67․․․․․․․․․․ |
Gallium (31)․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Ga-68․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Ga-72․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Gd-146․․․․․․․․․ |
Gadolinium (64)․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Gd-148․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Gd-153․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Gd-159․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Ge-68․․․․․․․․․․ |
Germanium (32)․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Ge-71․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x108 |
2.7x10−3 |
|
Ge-77․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Hf-172․․․․․․․․․ |
Hafnium (72)․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Hf-175․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Hf-181․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Hf-182․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Hg-194․․․․․․․․․ |
Mercury (80)․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Hg-195m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Hg-197․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Hg-197m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Hg-203․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Ho-166․․․․․․․․․ |
Holmium (67)․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x105 |
2.7x10−6 |
|
Ho-166m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
I-123․․․․․․․․․․ |
Iodine (53)․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
I-124․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
I-125․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
I-126․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
I-129․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
I-131․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
I-132․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
I-133․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
I-134․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
I-135․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
In-111․․․․․․․․․ |
Indium (49)․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
In-113m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
In-114m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
In-115m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Ir-189․․․․․․․․․ |
Iridium (77)․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Ir-190․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Ir-192․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Ir-194․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
K-40․․․․․․․․․․․ |
Potassium (19)․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
K-42․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
K-43․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Kr-79․․․․․․․․․․ |
Krypton (36)․․․․․․․․․․․ |
1.0 x 103 |
2.7 x 10-8 |
1.0 x 105 |
2.7 x 10-6 |
|
Kr-81․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 x 104 |
2.7 x 10-7 |
1.0 x 107 |
2.7 x 10-4 |
|
Kr-85․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x105 |
2.7x10−6 |
1.0x104 |
2.7x10−7 |
|
Kr-85m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x1010 |
2.7x10−1 |
|
Kr-87․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x109 |
2.7x10−2 |
|
La-137․․․․․․․․․ |
Lanthanum (57)․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
La-140․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Lu-172․․․․․․․․․ |
Lutetium (71)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Lu-173․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Lu-174․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Lu-174m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Lu-177․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Mg-28․․․․․․․․․․ |
Magnesium (12)․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Mn-52․․․․․․․․․․ |
Manganese (25)․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Mn-53․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x109 |
2.7x10−2 |
|
Mn-54․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Mn-56․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Mo-93․․․․․․․․․․ |
Molybdenum (42)․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x108 |
2.7x10−3 |
|
Mo-99․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
N-13․․․․․․․․․․․ |
Nitrogen (7)․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x109 |
2.7x10−2 |
|
Na-22․․․․․․․․․․ |
Sodium (11)․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Na-24․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Nb-93m․․․․․․․․․ |
Niobium (41)․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Nb-94․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Nb-95․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Nb-97․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Nd-147․․․․․․․․․ |
Neodymium (60)․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Nd-149․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Ni-59․․․․․․․․․․ |
Nickel (28)․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x108 |
2.7x10−3 |
|
Ni-63․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x105 |
2.7x10−6 |
1.0x108 |
2.7x10−3 |
|
Ni-65․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Np-235․․․․․․․․․ |
Neptunium (93)․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Np-236 (short-lived) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Np-236 (long-lived) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Np-237 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Np-239․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Os-185․․․․․․․․․ |
Osmium (76)․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Os-191․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Os-191m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Os-193․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Os-194․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
P-32․․․․․․․․․․․ |
Phosphorus (15)․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x105 |
2.7x10−6 |
|
P-33․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x105 |
2.7x10−6 |
1.0x108 |
2.7x10−3 |
|
Pa-230․․․․․․․․․ |
Protactinium (91)․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Pa-231․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Pa-233․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Pb-201․․․․․․․․․ |
Lead (82)․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Pb-202․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Pb-203․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Pb-205․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Pb-210 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Pb-212 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Pd-103․․․․․․․․․ |
Palladium (46)․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x108 |
2.7x10−3 |
|
Pd-107․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x105 |
2.7x10−6 |
1.0x108 |
2.7x10−3 |
|
Pd-109․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Pm-143․․․․․․․․․ |
Promethium (61)․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Pm-144․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Pm-145․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Pm-147․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Pm-148m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Pm-149․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Pm-151․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Po-210․․․․․․․․․ |
Polonium (84)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Pr-142․․․․․․․․․ |
Praseodymium (59)․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Pr-143․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x106 |
2.7x10−5 |
|
Pt-188․․․․․․․․․ |
Platinum (78)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Pt-191․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Pt-193․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Pt-193m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Pt-195m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Pt-197․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Pt-197m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Pu-236․․․․․․․․․ |
Plutonium (94)․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Pu-237․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Pu-238․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x104 |
2.7x10−7 |
|
Pu-239․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x104 |
2.7x10−7 |
|
Pu-240․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Pu-241․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Pu-242․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x104 |
2.7x10−7 |
|
Pu-244․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x104 |
2.7x10−7 |
|
Ra-223 (b) |
Radium (88)․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Ra-224 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Ra-225․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Ra-226 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Ra-228 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Rb-81․․․․․․․․․․ |
Rubidium (37)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Rb-83․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Rb-84․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Rb-86․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Rb-87․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Rb(nat)․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Re-184․․․․․․․․․ |
Rhenium (75)․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Re-184m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Re-186․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Re-187․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x106 |
2.7x10−5 |
1.0x109 |
2.7x10−2 |
|
Re-188․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Re-189․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Re(nat)․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x106 |
2.7x10−5 |
1.0x109 |
2.7x10−2 |
|
Rh-99․․․․․․․․․․ |
Rhodium (45)․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Rh-101․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Rh-102․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Rh-102m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Rh-103m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x108 |
2.7x10−3 |
|
Rh-105․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Rn-222 (b) |
Radon (86)․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x108 |
2.7x10−3 |
|
Ru-97․․․․․․․․․․ |
Ruthenium (44)․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Ru-103․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Ru-105․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Ru-106 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
S-35․․․․․․․․․․․ |
Sulphur (16)․․․․․․․․․․․ |
1.0x105 |
2.7x10−6 |
1.0x108 |
2.7x10−3 |
|
Sb-122․․․․․․․․․ |
Antimony (51)․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x104 |
2.7x10−7 |
|
Sb-124․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Sb-125․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Sb-126․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Sc-44․․․․․․․․․․ |
Scandium (21)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Sc-46․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Sc-47․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Sc-48․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Se-75․․․․․․․․․․ |
Selenium (34)․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Se-79․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Si-31․․․․․․․․․․ |
Silicon (14)․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Si-32․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Sm-145․․․․․․․․․ |
Samarium (62)․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Sm-147․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Sm-151․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x108 |
2.7x10−3 |
|
Sm-153․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Sn-113․․․․․․․․․ |
Tin (50)․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Sn-117m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Sn-119m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Sn-121m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Sn-123․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Sn-125․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Sn-126․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Sr-82․․․․․․․․․․ |
Strontium (38)․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Sr-85․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Sr-85m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Sr-87m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Sr-89․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Sr-90 (b)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x104 |
2.7x10−7 |
|
Sr-91․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Sr-92․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
T(H-3)․․․․․․․․․ |
Tritium (1)․․․․․․․․․․․․ |
1.0x106 |
2.7x10−5 |
1.0x109 |
2.7x10−2 |
|
Ta-178 (long-lived) |
Tantalum (73)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Ta-179․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Ta-182․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Tb-157․․․․․․․․․ |
Terbium (65)․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Tb-158․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Tb-160․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Tc-95m․․․․․․․․․ |
Technetium (43)․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Tc-96․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Tc-96m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Tc-97․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x108 |
2.7x10−3 |
|
Tc-97m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Tc-98․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Tc-99․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
Tc-99m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Te-121․․․․․․․․․ |
Tellurium (52)․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Te-121m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 x 102 |
2.7 x 10-9 |
1.0 x 106 |
2.7 x 10-5 |
|
Te-123m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Te-125m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Te-127․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Te-127m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Te-129․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Te-129m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Te-131m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Te-132․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Th-227․․․․․․․․․ |
Thorium (90)․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Th-228 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x104 |
2.7x10−7 |
|
Th-229 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Th-230․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x104 |
2.7x10−7 |
|
Th-231․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Th-232․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
Th-234 (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x105 |
2.7x10−6 |
|
Th (nat) (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
Ti-44․․․․․․․․․․ |
Titanium (22)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
Tl-200․․․․․․․․․ |
Thallium (81)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Tl-201․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Tl-202․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Tl-204․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x104 |
2.7x10−7 |
|
Tm-167․․․․․․․․․ |
Thulium (69)․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Tm-170․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Tm-171․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x108 |
2.7x10−3 |
|
Uranium (92)․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
|
U-230 (medium lung absorption) (e) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
U-230 (slow lung absorption) (f) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
|
U-232 (medium lung absorption) (e) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
U-232 (slow lung absorption) (f) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
U-233 (fast lung absorption) (d) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
U-233 (medium lung absorption) (e) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
U-233 (slow lung absorption) (f) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
U-234 (fast lung absorption) (d) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
U-234 (medium lung absorption) (e) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
U-234 (slow lung absorption) (f) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
|
U-236 (fast lung absorption) (d) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
U-236 (medium lung absorption) (e) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
U-236 (slow lung absorption) (f) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x104 |
2.7x10−7 |
|
|
U (nat) (b) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
U (enriched to 20% or less) (g) |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
U (dep)․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0 |
2.7x10−11 |
1.0x103 |
2.7x10−8 |
|
V-48․․․․․․․․․․․ |
Vanadium (23)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
|
V-49․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
W-178․․․․․․․․․․ |
Tungsten (74)․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
W-181․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
W-185․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x107 |
2.7x10−4 |
|
W-187․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
W-188․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Xe-122․․․․․․․․․ |
Xenon (54)․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x109 |
2.7x10−2 |
|
Xe-123․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x109 |
2.7x10−2 |
|
Xe-127․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x105 |
2.7x10−6 |
|
Xe-131m․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x104 |
2.7x10−7 |
|
Xe-133․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x104 |
2.7x10−7 |
|
Xe-135․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x1010 |
2.7x10−1 |
|
Y-87․․․․․․․․․․․ |
Yttrium (39)․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Y-88․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Y-90․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x105 |
2.7x10−6 |
|
Y-91․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x106 |
2.7x10−5 |
|
Y-91m․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Y-92․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Y-93․․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x105 |
2.7x10−6 |
|
Yb-169․․․․․․․․․ |
Ytterbium (70)․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x107 |
2.7x10−4 |
|
Yb-175․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Zn-65․․․․․․․․․․ |
Zinc (30)․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Zn-69․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x104 |
2.7x10−7 |
1.0x106 |
2.7x10−5 |
|
Zn-69m․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Zr-88․․․․․․․․․․ |
Zirconium (40)․․․․․․․․․ |
1.0x102 |
2.7x10−9 |
1.0x106 |
2.7x10−5 |
|
Zr-93 (b)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x103 |
2.7x10−8 |
1.0x107 |
2.7x10−4 |
|
Zr-95․․․․․․․․․․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x106 |
2.7x10−5 |
|
Zr-97 (b)․ |
․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ |
1.0x101 |
2.7x10−10 |
1.0x105 |
2.7x10−6 |
a [Reserved]
b Parent nuclides and their progeny included in secular equilibrium are listed as follows:
|
Sr-90 |
Y-90 |
|
Zr-93 |
Nb-93m |
|
Zr-97 |
Nb-97 |
|
Ru-106 |
Rh-106 |
|
Ag-108m |
Ag-108 |
|
Cs-137 |
Ba-137m |
|
Ce-144 |
Pr-144 |
|
Ba-140 |
La-140 |
|
Bi-212 |
Tl-208 (0.36), Po-212 (0.64) |
|
Pb-210 |
Bi-210, Po-210 |
|
Pb-212 |
Bi-212, Tl-208 (0.36), Po-212 (0.64) |
|
Rn-222 |
Po-218, Pb-214, Bi-214, Po-214 |
|
Ra-223 |
Rn-219, Po-215, Pb-211, Bi-211, Tl-207 |
|
Ra-224 |
Rn-220, Po-216, Pb-212, Bi-212, Tl-208 (0.36), Po-212 (0.64) |
|
Ra-226 |
Rn-222, Po-218, Pb-214, Bi-214, Po-214, Pb-210, Bi-210, Po-210 |
|
Ra-228 |
Ac-228 |
|
Th-228 |
Ra-224, Rn-220, Po-216, Pb-212, Bi-212, Tl-208 (0.36), Po-212(0.64) |
|
Th-229 |
Ra-225, Ac-225, Fr-221, At-217, Bi-213, Po-213, Pb-209 |
|
Th-nat |
Ra-228, Ac-228, Th-228, Ra-224, Rn-220, Po-216, Pb-212, Bi-212, Tl-208 (0.36), Po-212 (0.64) |
|
Th-234 |
Pa-234m |
|
U-230 |
Th-226, Ra-222, Rn-218, Po-214 |
|
U-232 |
Th-228, Ra-224, Rn-220, Po-216, Pb-212, Bi-212, Tl-208 (0.36), Po-212 (0.64) |
|
U-235 |
Th-231 |
|
U-238 |
Th-234, Pa-234m |
|
U-nat |
Th-234, Pa-234m, U-234, Th-230, Ra-226, Rn-222, Po-218, Pb-214, Bi-214, Po-214, Pb-210, Bi-210, Po-210 |
|
Np-237 |
Pa-233 |
|
Am-242m |
Am-242 |
|
Am-243 |
Np-239 |
c [Reserved]
d These values apply only to compounds of uranium that take the chemical form of UF6, UO2F2 and UO2(NO3)2 in both normal and accident conditions of transport.
e These values apply only to compounds of uranium that take the chemical form of UO3, UF4, UCl4 and hexavalent compounds in both normal and accident conditions of transport.
f These values apply to all compounds of uranium other than those specified in notes (d) and (e) of this table.
g These values apply to unirradiated uranium only.
|
Table A–3—General Values for A1 and A2 |
||||||||
|---|---|---|---|---|---|---|---|---|
|
A1 |
A2 |
|||||||
|
Contents |
(TBq) |
(Ci) |
(TBq) |
(Ci) |
Activity concentration for exempt material (Bq/g) |
Activity concentration for exempt material (Ci/g) |
Activity limits for exempt consignments (Bq) |
Activity limits for exempt consignments (Ci) |
|
Only beta or gamma emitting radionuclides are known to be present |
1 x 10−1 |
2.7 x 100 |
2 x 10−2 |
5.4 x 10−1 |
1 x 101 |
2.7 x 10−10 |
1 x 104 |
2.7 x 10−7 |
|
Alpha emitting nuclides, but no neutron emitters, are known to be present (a) |
2 x 10-1 |
5.4 x 100 |
9 x 10-5 |
2.4 x 10-3 |
1 x 10-1 |
2.7 x 10-12 |
1 x 103 |
2.7 x 10-8 |
|
Neutron emitting nuclides are known to be present or no relevant data are available |
1 x 10-3 |
2.7 x 10-2 |
9 x 10-5 |
2.4 x 10-3 |
1 x 10-1 |
2.7 x 10-12 |
1 x 103 |
2.7 x 10-8 |
|
Table A–4.—Activity-mass Relationships for Uranium |
||
|---|---|---|
|
Specific Activity |
||
|
Uranium Enrichment 1 wt % U-235 present |
TBq/g |
Ci/g |
|
0.45 |
1.8 x 10 −8 |
5.0 x 10 −7 |
|
0.72 |
2.6 x 10 −8 |
7.1 x 10 −7 |
|
1 |
2.8 x 10 −8 |
7.6 x 10 −7 |
|
1.5 |
3.7 x 10 −8 |
1.0 x 10 −6 |
|
5 |
1.0 x 10 −7 |
2.7 x 10 −6 |
|
10 |
1.8 x 10 −7 |
4.8 x 10 −6 |
|
20 |
3.7 x 10 −7 |
1.0 x 10 −5 |
|
35 |
7.4 x 10 −7 |
2.0 x 10 −5 |
|
50 |
9.3 x 10 −7 |
2.5 x 10 −5 |
|
90 |
2.2 x 10 −6 |
5.8 x 10−5 |
|
93 |
2.6 x 10 −6 |
7.0 x 10 −5 |
|
95 |
3.4 x 10 −6 |
9.1 x 10 −5 |
1 The figures for uranium include representative values for the activity of the uranium–234 that is concentrated during the enrichment process.






Cite this article: FindLaw.com - Code of Federal Regulations Title 10. Energy 10 CFR Pt. 71, App. A—Determination of A 1 and A 2 - last updated January 02, 2025 | https://codes.findlaw.com/cfr/title-10-energy/cfr-pt-10-71-app-a/
FindLaw Codes may not reflect the most recent version of the law in your jurisdiction. Please verify the status of the code you are researching with the state legislature before relying on it for your legal needs.
A free source of state and federal court opinions, state laws, and the United States Code. For more information about the legal concepts addressed by these cases and statutes, visit FindLaw’s Learn About the Law.
Get help with your legal needs
FindLaw’s Learn About the Law features thousands of informational articles to help you understand your options. And if you’re ready to hire an attorney, find one in your area who can help.
Search our directory by legal issue
Enter information in one or both fields (Required)
